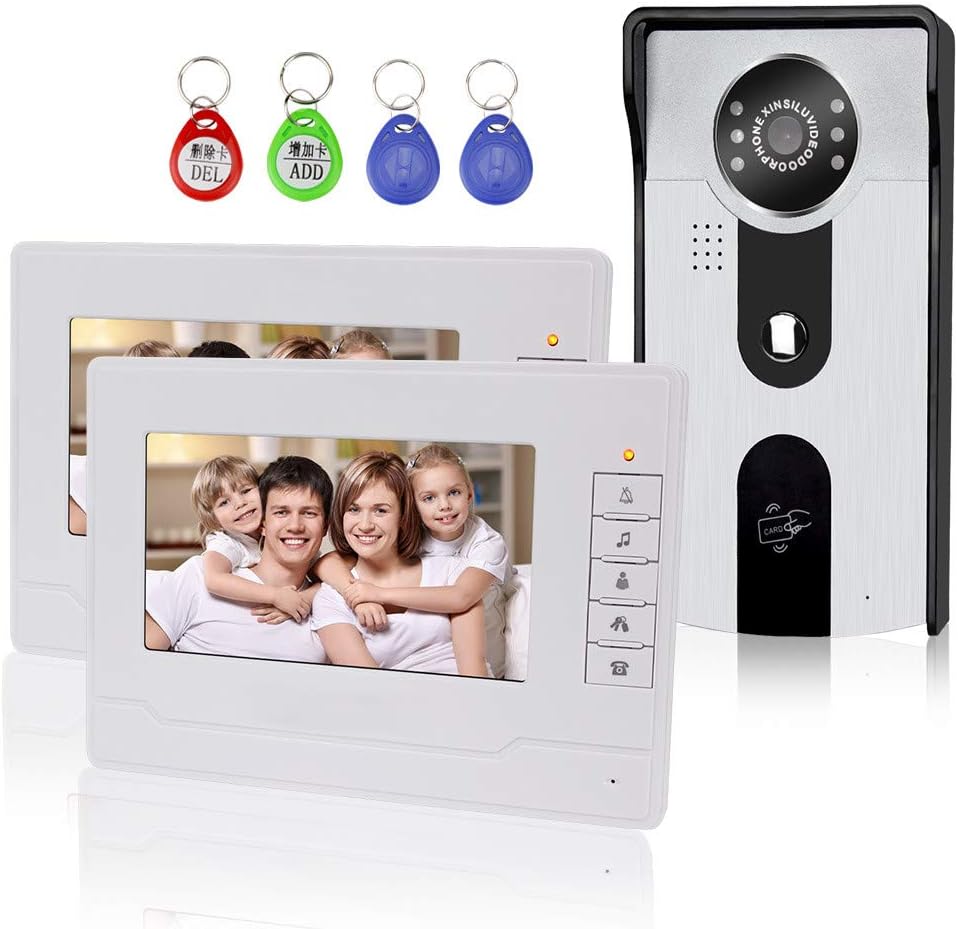

Kadongli 7" Video Doorbell Intercom System 2 Monitors RFID Access Control HD

Kadongli 7" Video Doorbell Intercom System with 2 Monitors

Enhance your home security with this comprehensive Kadongli video doorbell and intercom system. Featuring a 7-inch HD color monitor, RFID access control, and two-way audio, this wired system provides clear communication and peace of mind.

Key Features

• RFID Access Control: Outdoor unit supports door opening with 125KHz EM ID cards.
• Two-Way Audio: Communicate clearly with visitors through the outdoor camera and indoor monitors.
• IR Night Vision: Built-in LED infrared light provides clear visibility up to 5 meters in low light conditions.
• Expandable System: Supports connection of up to 2 outdoor cameras and 6 indoor monitors within the same system (requires 4-core or 5-core wiring for monitors and 2-core or 4-core for outdoor units).
• Inter-Monitor Communication: Connected indoor monitors can talk to each other.
• Access Control Integration: Compatible with access control products like electric door locks and power supplies.
• Wall Mounting: Designed for easy wall installation.
• Package Includes: 1 Outdoor Unit, 2 Indoor Units, 2 Power Adapters, 1 White Cable, 2 Mounting Plates, Screws & Wires, 4 RFID Keyfobs, and 1 User Manual.

Specifications

Indoor Unit (Monitor)

• LCD Screen: 7 inch TFT-LCD
• Resolution: 800x480
• Ringtone: 25 Chord
• Power Supply: Input AC100V-240V, Output DC15V/1200mA
• Power Consumption: Standby ≤1w, Working ≤10w
• Working Temperature: -20℃ to 60℃
• Wiring: 4 or 5 PIN Line RVV
• Dimensions: 240x150x23mm
• Material: ABS plastic

Outdoor Unit (Camera)

• Open Door Mode: EM ID card
• Working Frequency: 125KHz
• Camera Lens: CMOS
• Angle: 85°~92°
• Night Vision: LED infrared light, visible Within 5 Meters
• Camera: Color HD, 30W, 700TVL Resolution
• Power Supply: Receives power from monitor
• Wiring: 2 or 4 PIN Line RVV
• Dimensions: 180x98x35mm
• Material: Zinc alloy & Acrylic

Important Notice: Please test the product before installation. Keep the indoor unit at least 3 meters away from the outdoor unit during testing to avoid an unpleasant shrill sound.
