Kair White Airbrick Grille 150x70mm Ducting Damper Flap Ventilation Extractor

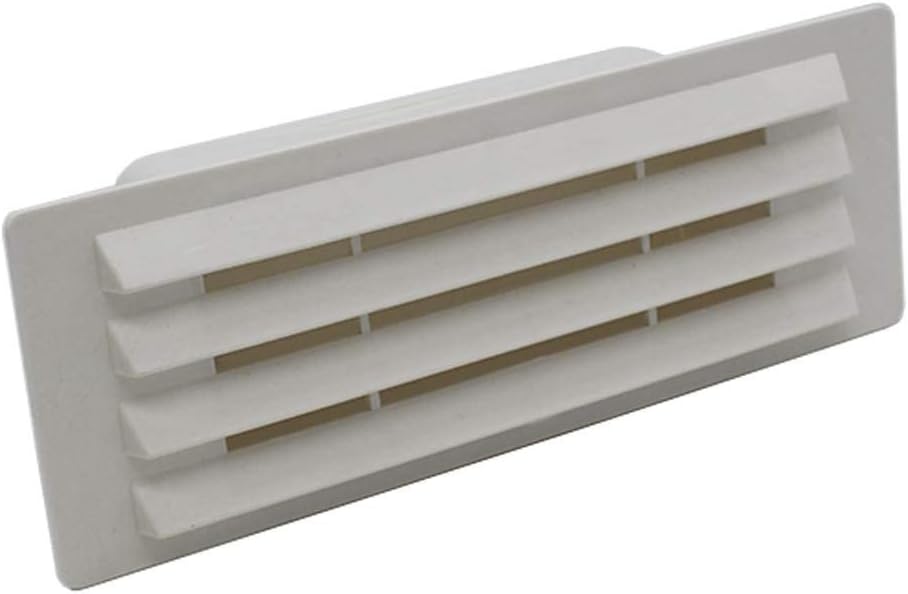

Kair White Airbrick Grille with Damper Flap

This Kair White Airbrick Grille is designed for use with 150mm x 70mm rectangular ducting. It features a built-in damper flap to help control airflow.

Key Features

• Brand: Kair
• Suitable for 150mm x 70mm rectangular ducting
• Includes a damper flap
• External grille dimensions: 221mm x 80mm
• Spigot size: 146mm x 65mm
• Compliant with Part F Building Regulations
• Temperature range: +60c to -15c
• Compatible with the Kair ducting range

Specifications

• Spigot Size: 146mm x 65mm
• External Dimensions: 221mm x 80mm
• Ducting Compatibility: Fits inside 150mm x 70mm rectangular ducting pipe (e.g., DUCVKC604 flat channel)
• Static Pressure Drop: 15 l/s: 23.66 Pa, 30 l/s: 44.40 Pa, 60 l/s: 100.39 Pa
• Free Area: 4,114 mm2
• Max Temperature: +60c
• Min Temperature: -15c

This airbrick grille is ideal for various ventilation applications including kitchens, bathrooms, hydroponics, in-line extract fans, tumble dryers, cooker hoods, whole house ventilation, passive stack ventilation, air conditioning, HVAC, and Heat Recovery Systems. Its performance and dimensions make it suitable for concealed duct runs above units or in ceiling voids. It is designed to fit over the spigot with both straight pipe (Female fittings) and connector bends (Male fittings).

The Kair ducting range offers extensive compatibility with fittings, outlets, and grilles for a complete ventilation solution.
