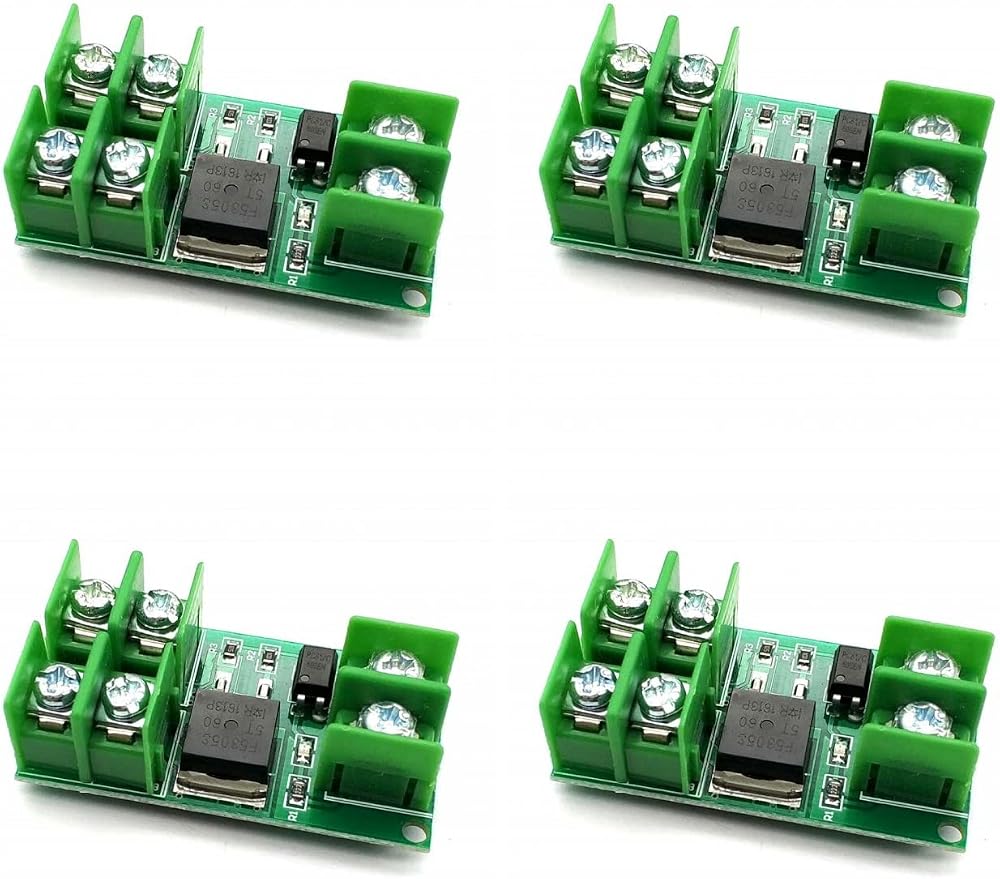

JZK 4Pcs F5305S Electronic Switch Control Board 3V-24V In 5V-36V Out MOSFET

Product Overview

This listing is for a set of 4 JZK F5305S electronic switch control board modules. These versatile modules are designed for electronic switching applications, offering isolation between input and output signals and the ability to control a wide range of devices.

Key Features

• MOSFET Module: Input and output are completely isolated.
• Input Signal Voltage: 3V to 24V, with a current draw of approximately 5mA.
• Output Control: Capable of controlling high-power equipment such as motors, light bulbs, LED strips, DC motors, micro water pumps, and solenoid valves.
• Output Controlled Voltage: 5V to 36V.
• Output Current: Rated for up to 5A without a heatsink. For currents exceeding 5A, a heatsink is required. The maximum controllable current is 20A.
• Signal Trigger: Uses a digital high or low level signal. Compatible with microcontroller IO ports, PLC interfaces, and DC power supplies.
• Original F5305S Power Field Effect Tube: Supports PWM input for precise control of motor speed and lamp brightness.

Specifications

• Brand: JZK
• Model: F5305S
• Quantity: 4 Pieces
• Board Size: 47 x 25 x 15 mm
