inShareplus 12V 30A 360W DC Switching Power Supply 110/220V Input

Key Features

• Brand: inShareplus
• Output: 12 V DC, 30 A (360 W)
• Input: Universal 110/220 V AC

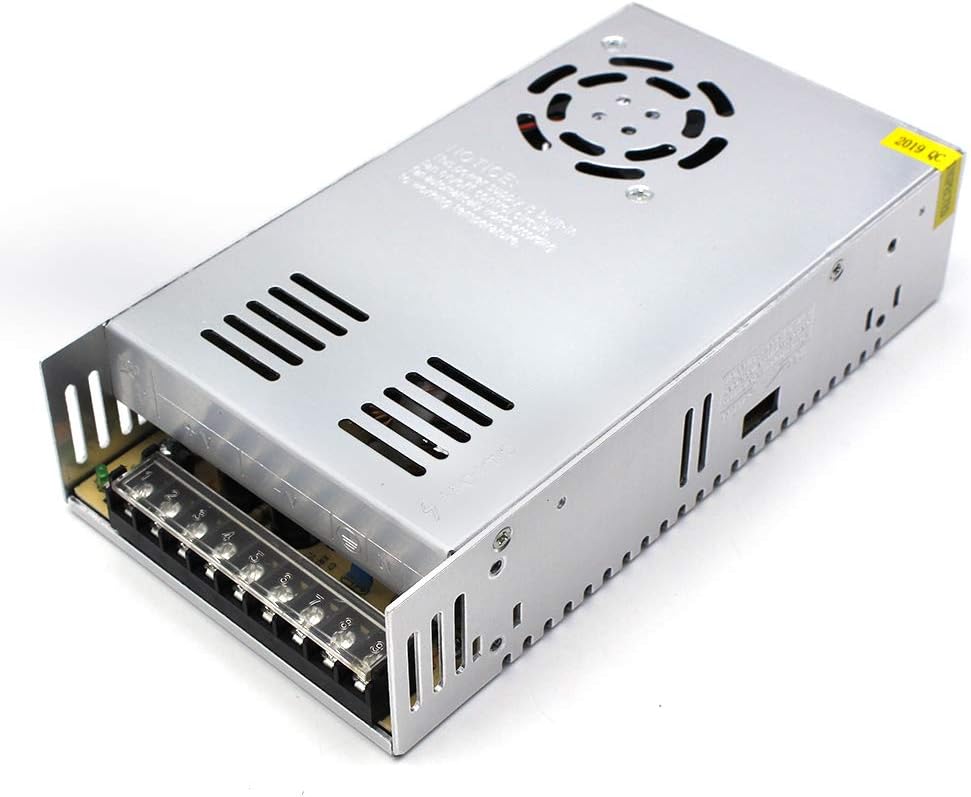

• Design: Aluminum housing with honeycomb ventilation; built-in fan on models 360 W and above for efficient cooling
• Protection: Short circuit, overload, and over voltage protections
• Terminals: M4 screws (4 mm)

Specifications

• Model: inShareplus DC switching power supply
• Output Voltage: 12 V DC
• Output Current: up to 30 A
• Maximum Power: 360 W
• Input Voltage: 110 V or 220 V AC (default 220 V; switchable to match local supply)
• Efficiency: Optimized switching design with heat management
• Safety: Multiple protections for stable and reliable operation

Applications

• LED strip lighting and LED drivers
• 3D printers, radios, ham transceivers, CCTV cameras
• Networking and audio equipment, other low voltage DC devices

Usage Notes

• Ensure power connections are correct and the input voltage is set to match your local supply
• Power usage should be kept below 80% of the rated capacity for longevity
• Before installation, confirm proper wiring and polarity

Quality & Support

• Each unit undergoes rigorous testing and burn-in for durability
• Dedicated support team available to assist with any issues
