Mintor TCF/Z Hydraulic Filling Breather Plug Oil Tank Filler 10x1 Metric

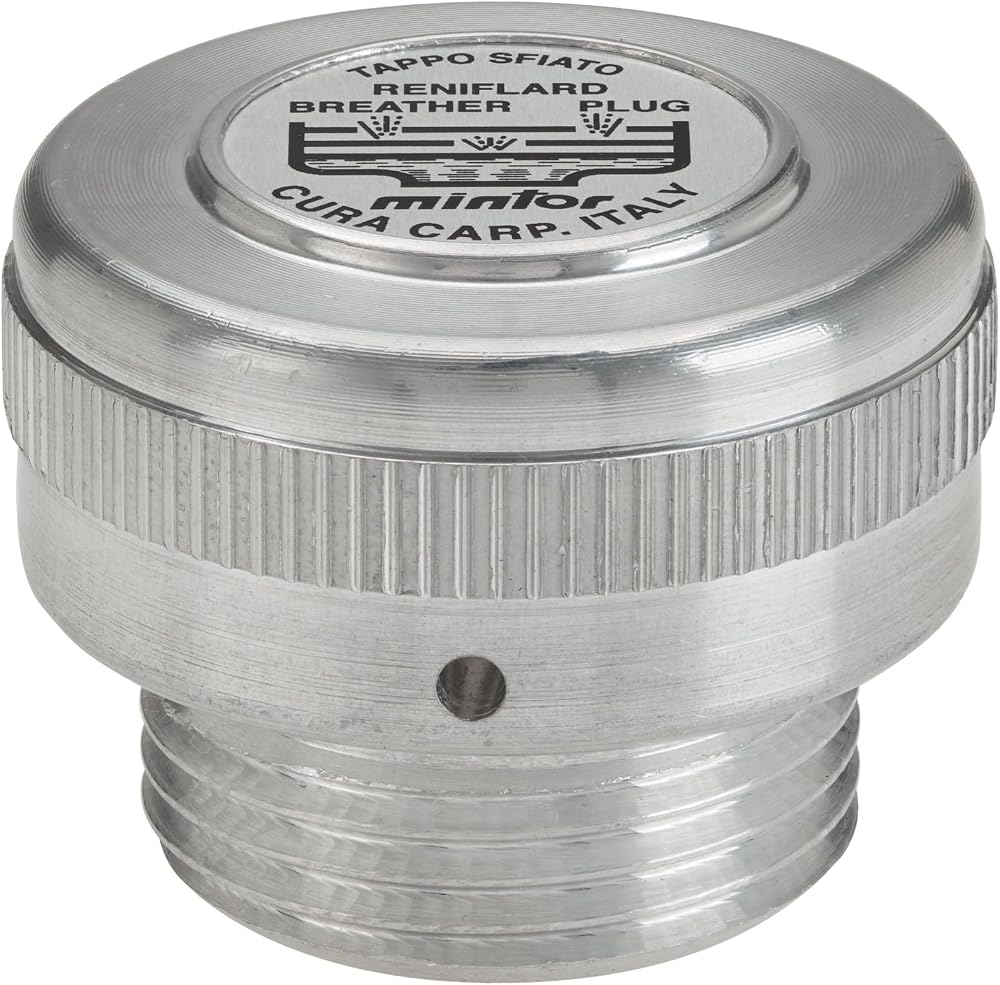

Mintor TCF/Z Hydraulic Filling Breather Plug

This Mintor TCF/Z filling plug features a breather function and is designed for oil tank applications. It is constructed from untreated aluminum alloy with a knurled round head for easy hand-tightening. The integrated venting hole, with a diameter of 2 mm to 3.5 mm, allows for free venting of internal pressure.

Important Application Note: This plug should only be installed on the upper part of the crankcase, away from any moving parts. For applications requiring exceptionally tight sealing, the TSFT/N type is recommended.

Specifications

• Brand: Mintor
• Model: TCF/Z
• Type: Hydraulic Filling Breather Plug
• Application: Oil Tank Filler
• Thread Size: 10x1 Metric
• Material: Aluminum Alloy (untreated)
• Head Type: Knurled Round Head for hand-tightening
• Venting Hole Diameter: 2 mm to 3.5 mm (free vented)
