HFeng Access Control System Kit RFID Keypad 180KG Magnetic Lock Power Supply

HFeng Full Access Control System Kit

This comprehensive access control system kit from HFeng provides a secure and convenient solution for managing entry. It includes an RFID keypad, a powerful 180KG electric magnetic lock, a reliable power supply, a door exit button, and ten RFID keyfobs for user access.

Key Features

• RFID Keypad: Supports RFID cards and passwords for identification, with a capacity for 1000 users.
• 180KG Magnetic Lock: Powerful holding force (350lbs) suitable for various door types (metal, wooden, glass). Features a waterproof design for outdoor installation. Locks when powered on, unlocks when powered off (Fail Safe).
• Power Supply: Provides stable DC 12V/3A output with adjustable time delay (0-15 seconds). Universal AC input (100V-260V).
• Door Exit Button: Easy-to-use button for exiting, supports both NC and NO modes.
• RFID Keyfobs: 10 included keyfobs, each with a unique ID for user access.

Product Specifications

Access Control Keypad

• Material: High quality plastic
• User Capacity: 1000 users
• Working Frequency: 125KHz
• Card Reading Type: EM card
• Card Reading Distance: 0-5CM
• Identification Method: RFID card, password, card + password
• Door Bell Function: Support
• Unlocking Time: 5 seconds
• Working Voltage: DC 12V ± 10%
• Working Power: <100mA
• Size: 113*70*20mm

180KG Magnetic Lock

• Material: Aluminum alloy shell + iron plate
• Holding Force: 180KG / 350lbs
• Working Voltage: DC12V
• Working Current: 380-430mA
• Suitable for Door: Metal, wooden, glass door
• Humidity: 0 to 95%
• Working Temperature: -10 to 55 Celsius degree
• Working Mode: Locked when power on, unlocked when power off
• Waterproof: Yes

Power Supply

• Material: Steel
• AC Input: Standard AC100V-260V / 50-60HZ
• DC Output: DC12V / 3 A
• Time Delay: 0-15 seconds adjustable
• Dimension: 140X67X33mm (L/W/H)

Door Exit Button

• Material: Hard Plastic
• Maximum Power Rating: 36V DC 3A—5A output
• Support Modes: NC Mode (Fail Safe) & NO Mode (Fail Secure)
• Dimension: 86X86MM

10* RFID Keyfobs

• Material: ABS
• Operating Frequency: 125kHz
• Detection Range: 0-10cm
• Features: Each card pre-programmed with a unique identity number.

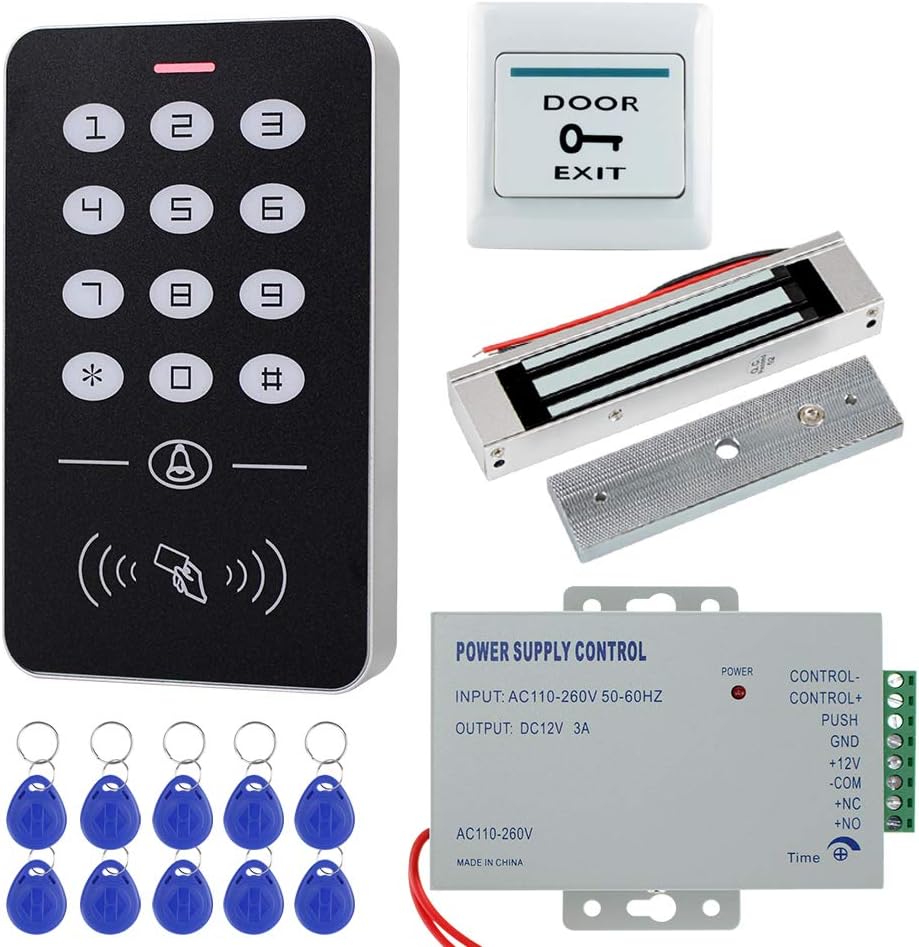

Package Includes

• 1x RFID Access Control Keypad
• 1x 180KG Electric Magnetic Lock
• 1x Power Supply
• 1x Exit Button
• 10x RFID Blue Keyfobs
