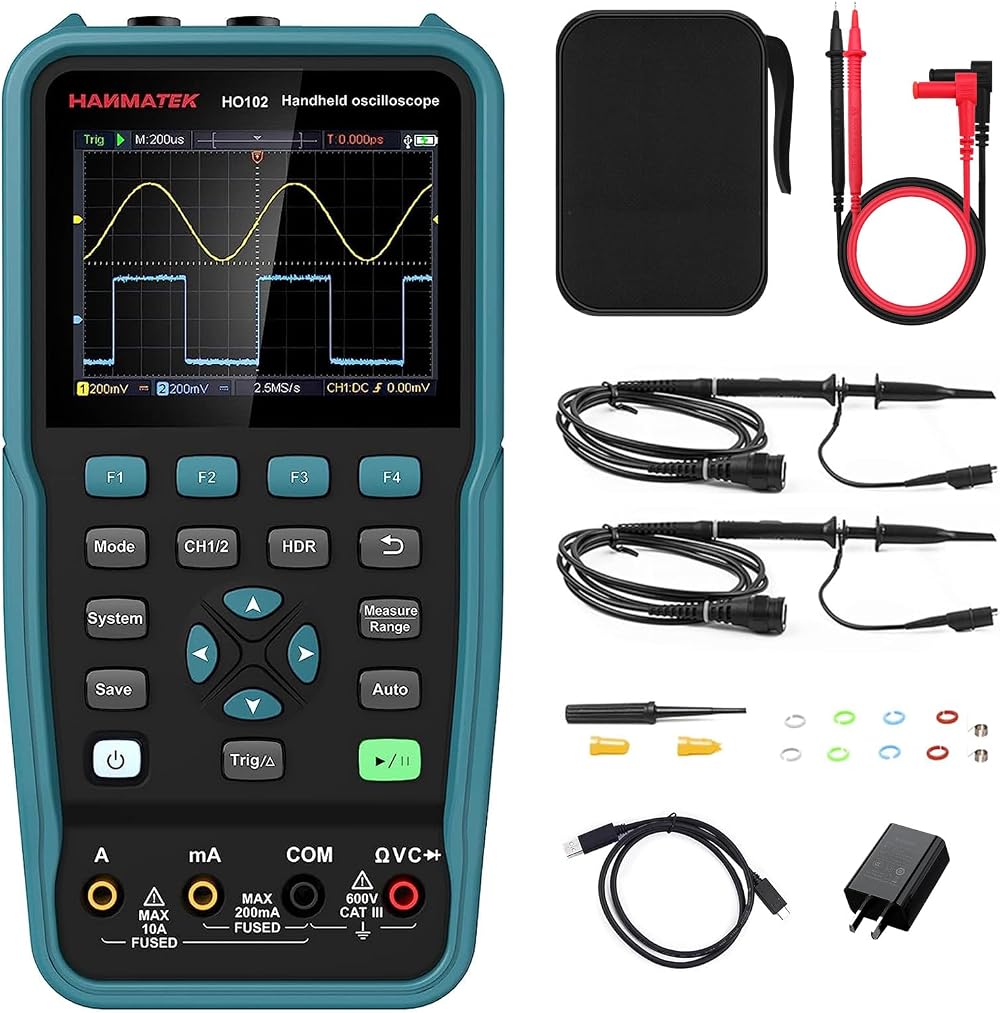

HANMATEK Handheld Digital Oscilloscope 100MHz 2-Channel HO102 3.5�� TFT

Key Features

• Brand: HANMATEK
• Type: Handheld Digital Oscilloscope and Multimeter
• Bandwidth: 100 MHz
• Channels: 2-channel input
• Display: 3.5 inch TFT backlit screen
• Sampling: Real-time up to 250 MSa/s
• Memory/Save: Up to 8k dots; saves in CSV and images
• Auto-Calibration: Self-calibration function
• Measurement: 7 automatic measurements, XY mode, cursor measurements
• Meter Mode: 4 1/2 digits true RMS, voltage, current, resistance, diode, continuity, capacitance
• Safety: Independent oscilloscope and multimeter input; maximum input voltage AC 750 V, DC 1000 V
• Connectivity: USB Type-C for power, charging, and data read on computer
• Save Features: 4 groups of settings, reference waveforms, images, and waveforms in CSV
• Accessories: Carrying bag, probe, adapter, USB cable, calibration pen, manuals

Specifications

• Display: 3.5 inch TFT, backlit
• Waveform rate: Up to 10000 wfms/s
• Memory: 8k points per channel
• Auto-measurements: 6 or more on screen
• XY Function: Waveform plotting
• Import/Export: CSV waveform data and images

The HANMATEK HO102 combines a handheld oscilloscope with a multifunction digital multimeter in a compact form factor, featuring a high bandwidth, multiple measurement modes, convenient auto-setup, and flexible data handling for field debugging and evaluation.
