Haisheng 15x 3.3V to 5V 4-Channel Bi-Directional Logic Level Converter Module

Haisheng 15-Piece 4-Channel Bi-Directional Logic Level Converter Module

This Haisheng logic level converter module is designed for efficient circuit design, enabling seamless conversion between 3.3V and 5V logic levels. Each module supports bi-directional shifting, allowing signals to be reduced from 5V to 3.3V and increased from 3.3V to 5V simultaneously.

Key Features

• Bi-Directional Conversion: Easily shifts logic levels between 3.3V and 5V in both directions.
• Anti-Reverse Connection Protection: Features power input protection to prevent damage from incorrect power connection.
• Integrated LDO: Includes a 3.3VLDO with an output current capability of up to 150mA for external use.
• Power Indicator: Equipped with a power indicator light for clear operational status.
• Durable Construction: Made from high-hardness, wear-resistant metal alloy with anti-corrosion and anti-rust properties.

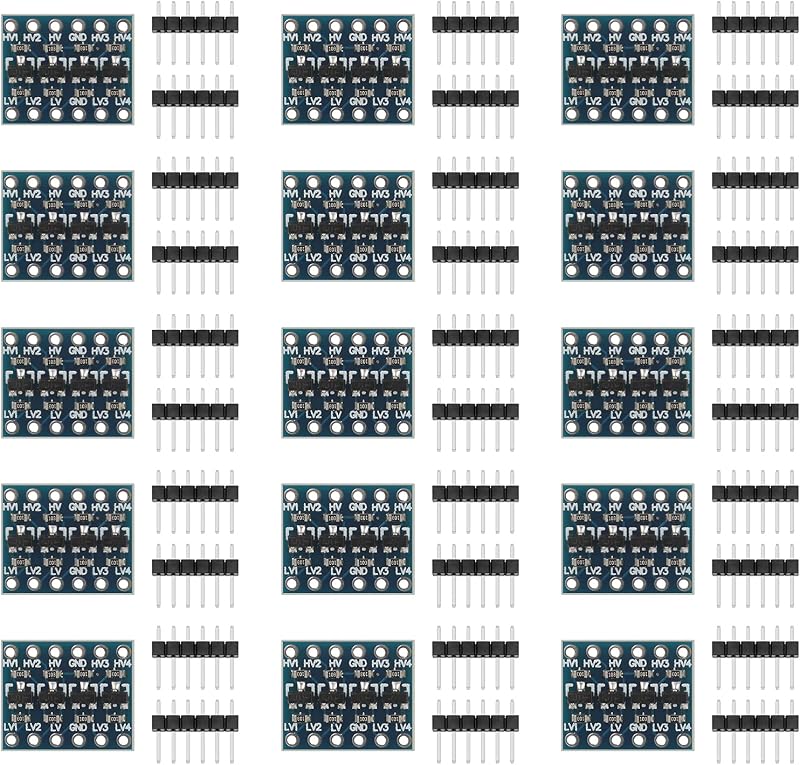

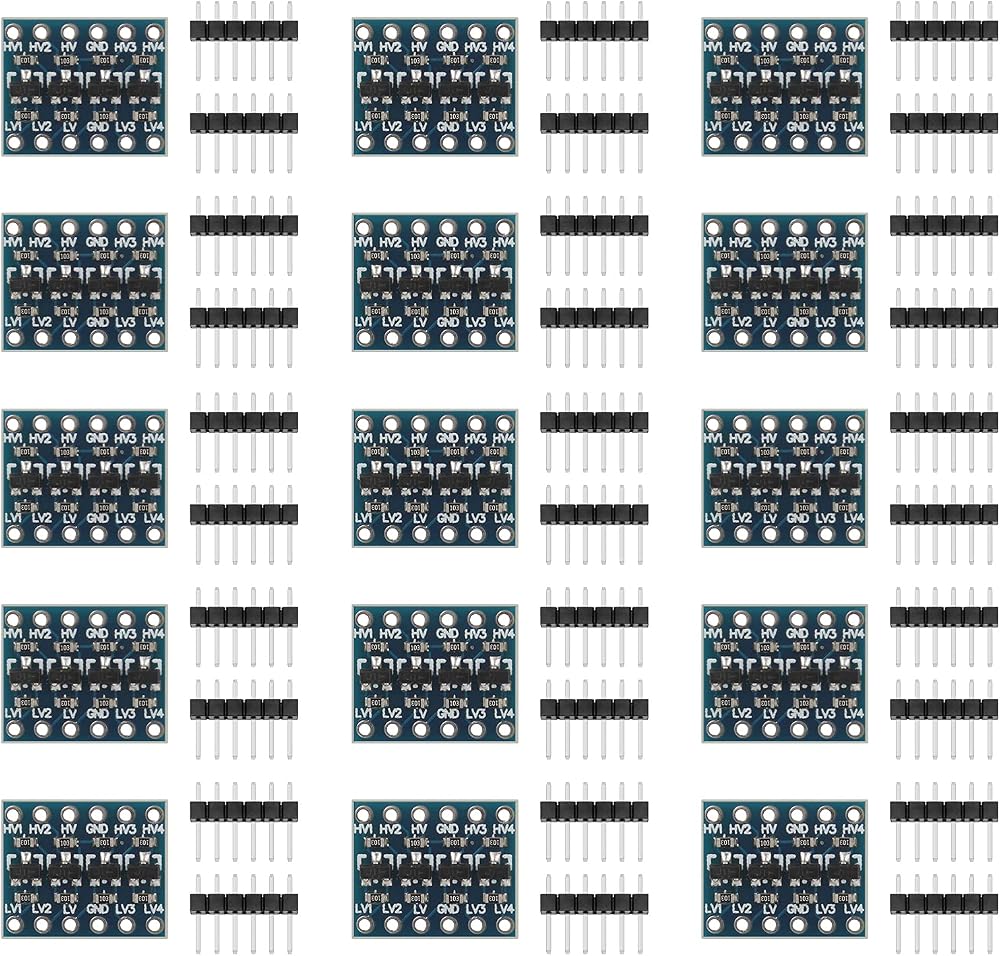

• Abundant Quantity: Supplied with 15 logic level converter modules and 30 6-pin headers.

Specifications

• Brand: Haisheng
• Channels: 4
• Input/Output Voltages: 3.3V to 5V
• Converter Module Size: 1.5 x 1.3 x 0.2 cm
• 6-Pin Header Size: 3 x 1.1 cm

This practical module is ideal for Arduino projects and various circuit design applications, enhancing work convenience and efficiency.
