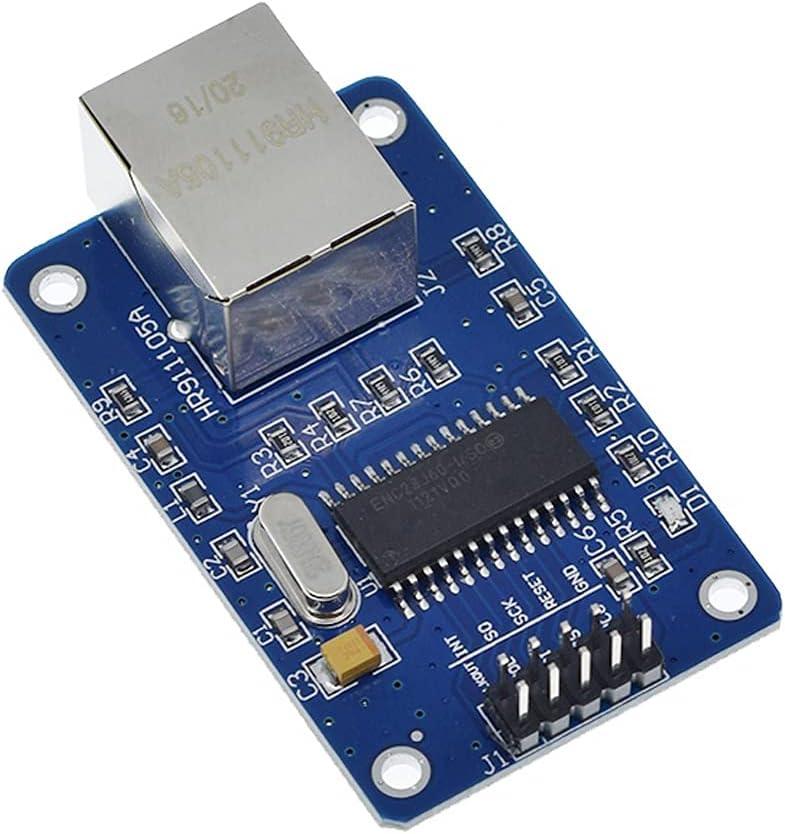

Hailege ENC28J60 Ethernet LAN Network Module SPI 3.3V for AVR PIC STM32

Introduction

This module is based on the ENC28J60 integrated circuit, providing a complete Ethernet interface for your embedded projects. It is controlled via the SPI interface, offering a convenient solution for embedded systems. The module features an 8 KB buffer and operates at 3.3 V. The inputs are 5 V tolerant, allowing for easy interfacing with 5 V circuits.

This circuit adheres to the IEEE 802.3 standard, is compatible with 10/100 Base-T networks, and supports full and half duplex modes. It includes an integrated MAC and a 10 Base-T PHY. The ENC28J60 Ethernet module also offers programmable automatic retransmit on collision, programmable padding and CRC generation, and programmable automatic rejection of erroneous packets.

Key Features

• IEEE 802.3 Compatible Ethernet Controller
• Fully Compatible with 10/100 Base-T Networks
• SPI Interface for Control
• 8 KB Buffer
• 3.3V Operation
• 5V Tolerant Inputs
• Integrated MAC and 10 Base-T PHY
• Programmable Automatic Retransmit on Collision
• Programmable Padding and CRC Generation
• Programmable Automatic Rejection of Erroneous Packets

Specifications

• Brand: Hailege
• Chipset: ENC28J60
• Interface: SPI
• Voltage: 3.3V
• Network Compatibility: 10/100 Base-T
• Duplex Modes: Full and Half Duplex
• Buffer Size: 8 KB
