Hailege 2x W5500 Ethernet Module SPI to LAN TCP IP 3.3V 5V for STM32 WIZ820io

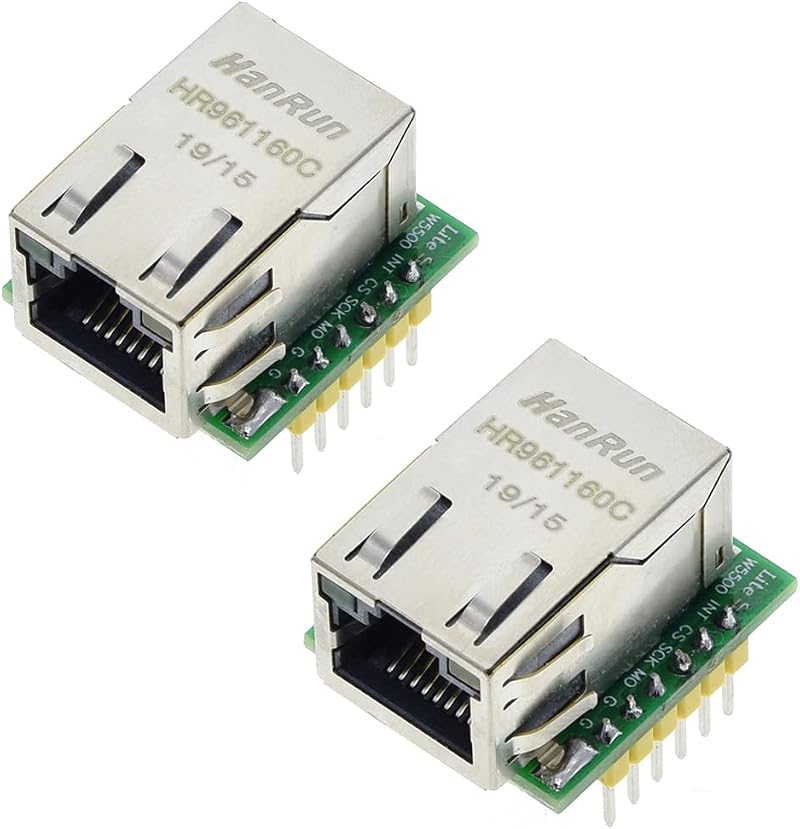

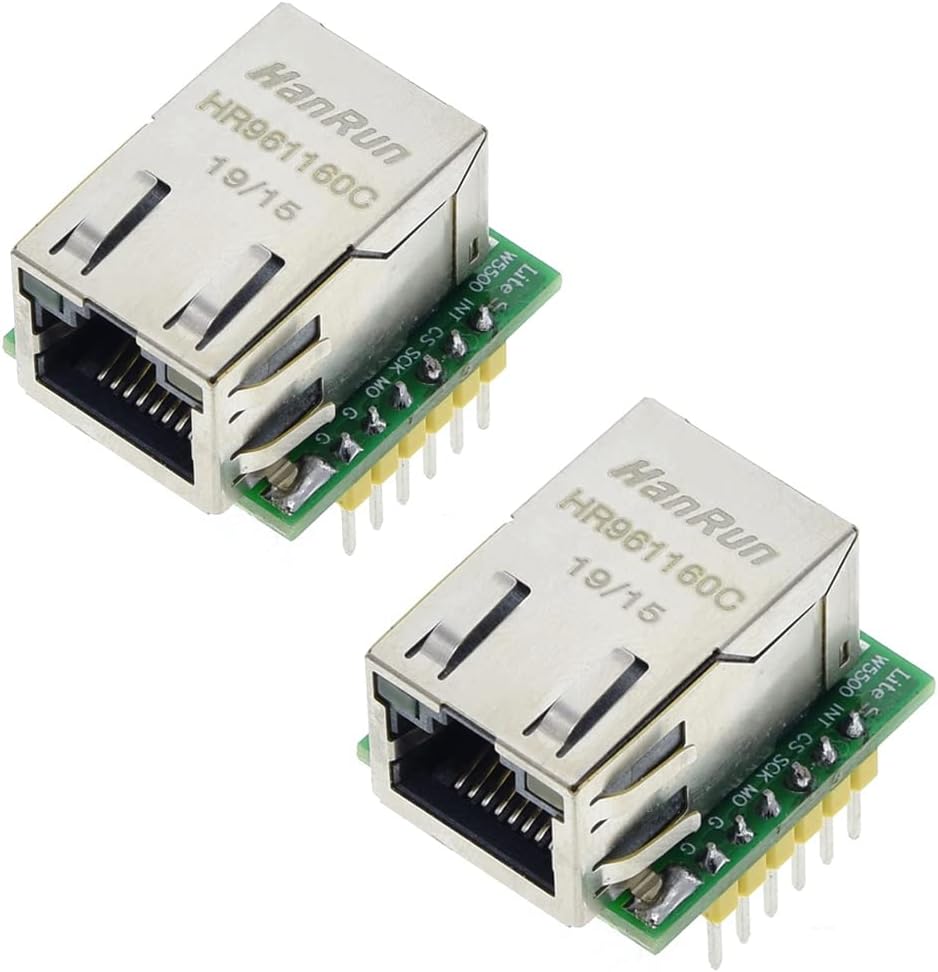

Hailege W5500 Ethernet Network Module

This listing is for two Hailege USR-ES1 SPI to Ethernet network modules. These modules are designed for embedded applications requiring a wired network connection.

Key Features

• High speed SPI interface up to 80MHz
• Integrated hardware TCP/IP protocol stack
• Supports up to 8 Sockets
• Supports TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocols
• Integrated data link and physical layers
• Supports wakeup functionality
• SPI modes 0 and 3 supported
• Internal 32K byte receive buffer
• Embedded 10BaseT/100BaseTX Ethernet physical layer (PHY)
• Supports auto negotiation (10/100-Based full or half duplex)
• 3.3V working voltage, compatible with 5V voltage signals
• LED indicators for network status (full duplex/half duplex, connection, speed, activity)
• Ultra-small pin type package for embedded systems

Specifications

• Brand: Hailege
• Model: USR-ES1 (W5500-based)
• Interface: SPI
• Protocol Stack: Hardware TCP/IP
• Working Voltage: 3.3V
• I/O Voltage: 3.3V TTL level, 5V signal compatible
• Current Requirement: Not less than 200mA
• SPI Speed: Up to 80MHz
• Ethernet Speed: 10/100Mbps
• Buffer Size: 32KB receive buffer

Package Includes

• 2 * Hailege W5500 SPI to LAN Ethernet Network Modules
