Hailege 2pcs MCP2515 CAN Bus Module TJA1050 Receiver SPI AVR 1Mb/s

Hailege MCP2515 CAN Bus Module with TJA1050 Receiver

This listing is for two Hailege MCP2515 CAN Bus Modules featuring the TJA1050 receiver. These modules are designed for use with AVR microcontrollers and support the CAN V2.0B specification.

Key Features

• Supports CAN V2.0B specification
• Communication speed up to 1Mb/s
• Data field up to 8 bytes
• Supports standard frame, extended frame, and remote frame
• 5V DC power supply module
• SPI interface protocol control
• Integrated 120 ohm termination resistors for impedance matching and long-distance data transmission
• Compact module size: 4.4cm x 2.8cm
• Screw hole center spacing: 23mm x 38mm
• Low working current: typical 5mA, 1 microamp standby current (excluding power indicator)
• Wide working temperature range: Industrial grade -40°C to 85°C

Specifications

• Brand: Hailege
• Model: MCP2515 CAN Bus Module
• Receiver Chip: TJA1050
• Protocol: CAN V2.0B
• Max. Speed: 1Mb/s
• Data Field: 0 to 8 bytes
• Power Supply: 5V DC
• Interface: SPI
• Termination Resistor: 120 ohm
• Module Dimensions: 4.4cm x 2.8cm
• Working Current: ~5mA (typical)
• Standby Current: ~1µA
• Operating Temperature: -40°C to 85°C

Package includes:

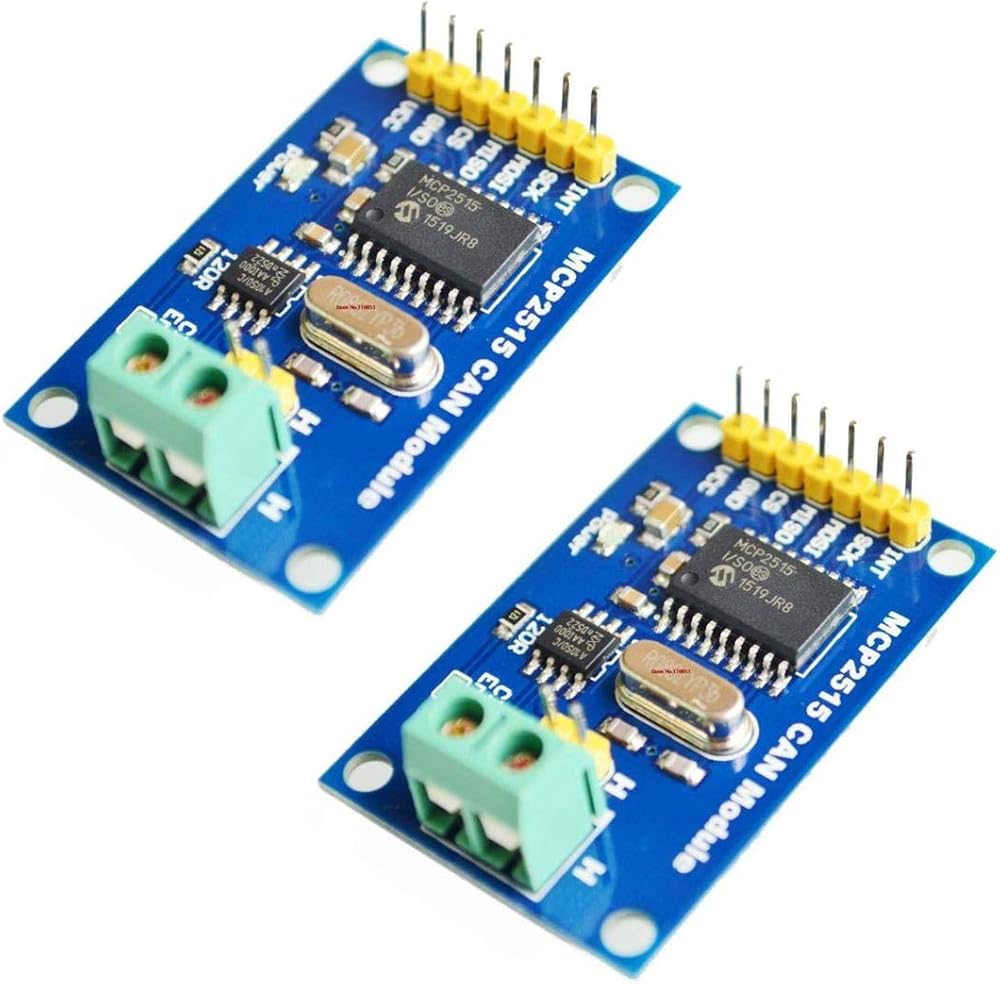

• 2 x Hailege MCP2515 CAN Bus Module
