GLOTRENDS PA41 Quad M.2 NVMe to PCIe 4.0 X16 Adapter Soft RAID OS Boot

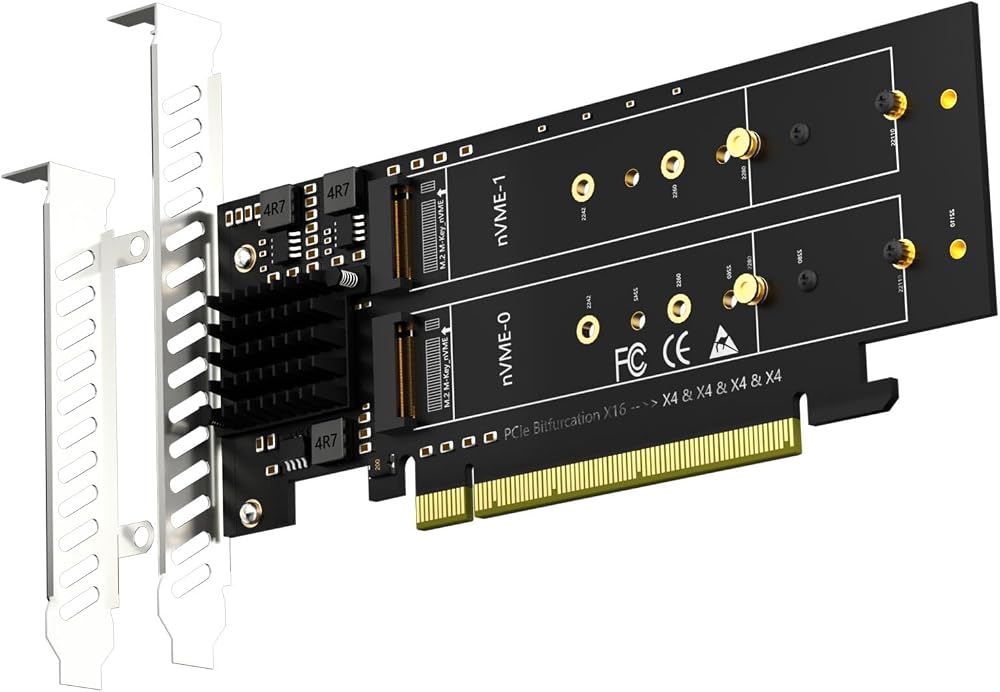

GLOTRENDS PA41 Quad M.2 NVMe to PCIe 4.0 X16 Adapter

Expand your system's storage capabilities with the GLOTRENDS PA41 Quad M.2 NVMe to PCIe 4.0 X16 Adapter. This adapter allows you to install up to four M.2 NVMe SSDs, providing simultaneous access to all drives. Ideal for users seeking to implement Soft RAID configurations through their operating system.

Key Features

• Quad M.2 NVMe Support: Accommodates four M.2 NVMe SSDs, supporting sizes 22110, 2280, 2260, 2242, and 2230.
• PCIe 4.0 X16 Interface: Delivers high-speed data transfer up to 64Gbps when connected to a PCIe 4.0 compatible slot.
• Soft RAID Capability: Enables the setup of NVMe RAID configurations using OS tools (Intel/AMD platforms).
• OS Boot Support: Supports booting your operating system directly from the M.2 NVMe SSDs (BIOS/UEFI settings required).
• Wide OS Compatibility: Plug-and-play functionality for Windows 11/10/8 and Linux. Mac OS is also supported.

Important Considerations

PCIe Bifurcation Requirement: This adapter does NOT natively support PCIe Bifurcation. A motherboard that supports PCIe Bifurcation (e.g., X4X4X4X4 or Hyper M.2 X16 mode) is REQUIRED for all four M.2 NVMe SSDs to be recognized. Without motherboard support, only the NVMe-1 port will function.

PCIe 4.0 Speed: To achieve the full PCIe 4.0 X4 (64Gbps) speed, your CPU, motherboard PCIe slot, and M.2 NVMe SSDs must all support PCIe 4.0. Note that Intel CPUs below 11th generation do not support PCIe 4.0.

Intel VROC License: Setting up Intel's RAID-on-CPU (VROC) requires a separate license purchase.

Initial Setup: Newly installed M.2 NVMe SSDs require initialization and formatting within the operating system before they can be recognized.

Mac Pro 5.1: This adapter is not compatible with Mac Pro 5.1 systems for Soft RAID setup.

Specifications

• Brand: GLOTRENDS
• Model: PA41
• Interface: PCIe 4.0 X16
• M.2 NVMe Support: 22110/2280/2260/2242/2230
• Number of M.2 Slots: 4
• RAID Support: Soft RAID via OS Tools
• Boot Support: OS Booting Compatible
• Platform Support: Intel/AMD (Soft RAID), Mac OS
• Operating System Compatibility: Windows 11/10/8, Linux, Mac OS
