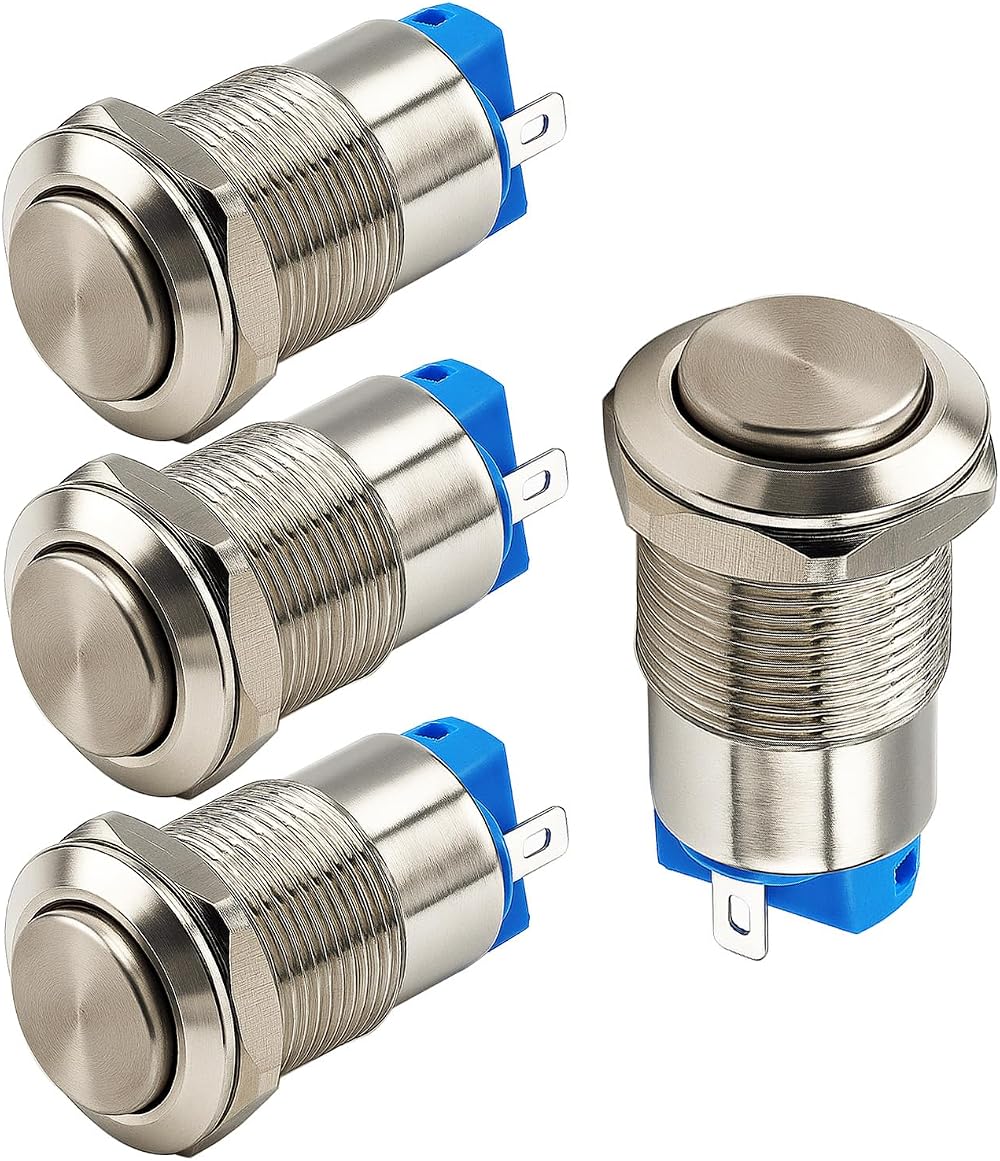

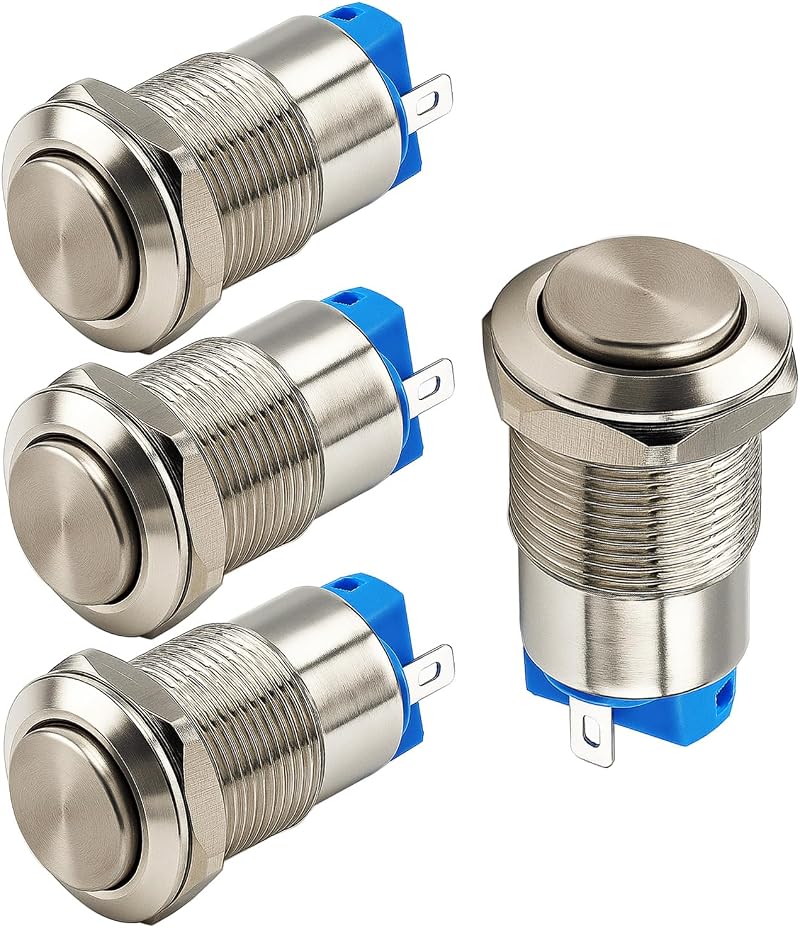

Gebildet 4Pcs Waterproof Latching Push Button Switch 12V 24V 125V 250VAC

Key Features

• Brand: Gebildet
• Quantity: 4 pieces
• Type: Waterproof push button switch, latching, on-off
• Head: High head, diameter 14 mm
• Material: Nickel-plated copper
• Color: Silver
• IP/IK Rating: IP65, IK10
• Operating Temp: -20°C to +55°C
• Mounting Hole Size: 12 mm (1/2 inch)

Specifications

• Electrical Rating: 3A at 12V/24V or 125V/250VAC
• Terminal Type: 2 pins, soldering
• Push Button Thread: 0.75 mm
• Mechanical Life: >500,000 cycles
• Electrical Life: >50,000 cycles
• Insulation Resistance: ≥1000 MΩ
• Contact Resistance: ≤50 mΩ

Notes

• Includes 4× metal push button switches
• Rubber O-ring provides splash resistance, not submersion
• Wiring requires careful soldering; recommended to complete within a short time
• Professional use recommended; support available within 24 hours for questions

Designed for durable performance in electrical switch applications requiring IP65 protection and reliable latching action.
