Gebeldet 19mm Metal Push Button Switch Momentary 2A 12V 24V 125V 250V IP65

Product Overview

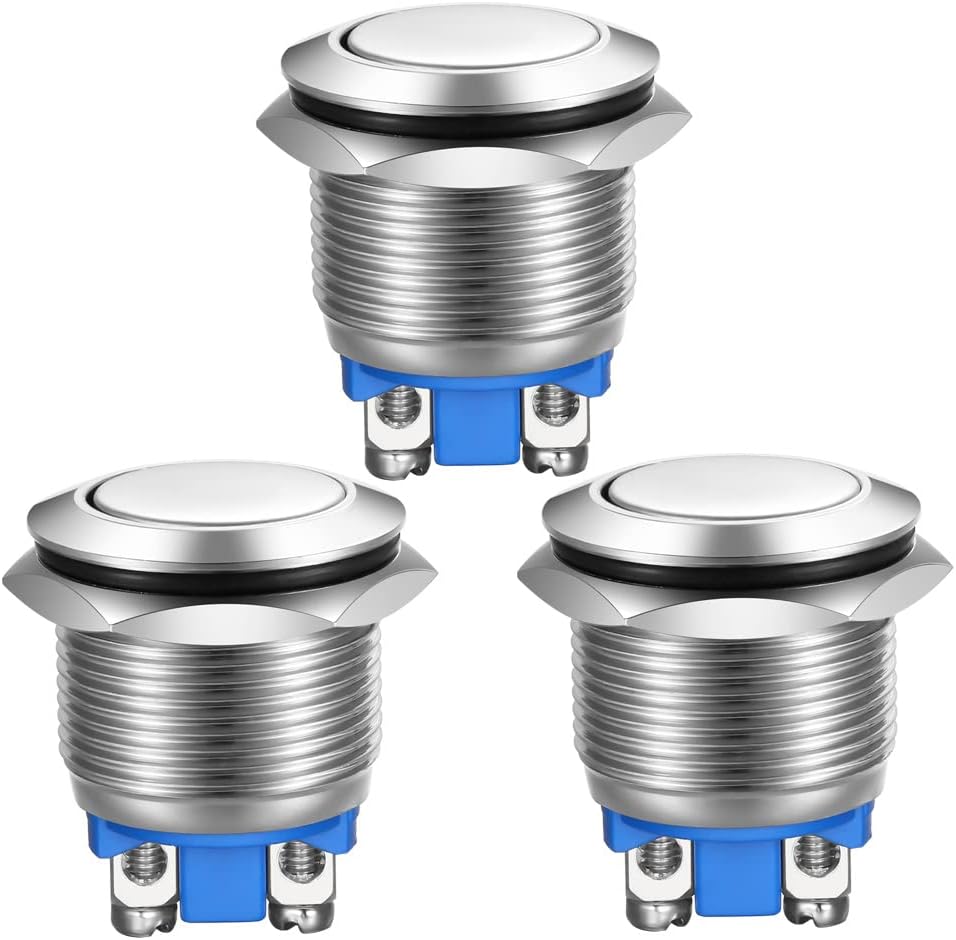

This Gebildet 3-piece set features durable, silver-colored momentary push buttons designed for reliable operation. Constructed from nickel-plated brass and stainless steel, these buttons are built to withstand harsh environments with IP65 and IK10 protection ratings, making them waterproof and rustproof. They are ideal for applications requiring a momentary switch with screw terminals, eliminating the need for soldering.

Key Features

• Product Name: Waterproof and Rustproof Push Button Momentary Button
• Color: Silver
• Material: Nickel plated brass + stainless steel
• Head Shape: Flat Head
• Mounting Hole Size: 19mm
• Terminal Type: Screw
• Operation Type: Momentary
• Button Max Rating: 2A 12V/24V/125V/250V
• Protection Level: IP65, IK10
• Operation Temperature: -20℃ to +55℃
• Mechanical Life: Over 500,000 times
• Electrical Life: Over 50,000 times

Package Contents

• 3 x Metal Push Buttons
• 2 x Screw Terminals (Flat Head)

Important Notes

• These push buttons are splash resistant due to an included rubber O-ring but are not intended for submersion in water.
• Screw type terminals allow for easy installation without soldering.
• Please allow for a 1-3mm manual measurement error.
• This product is recommended for professional users. If you encounter any operational issues, please reach out for assistance.
