Gathukila Smart6818 Core Board S5P6818 A53 Eight Core 2GB 16GB EMMC Dev Board

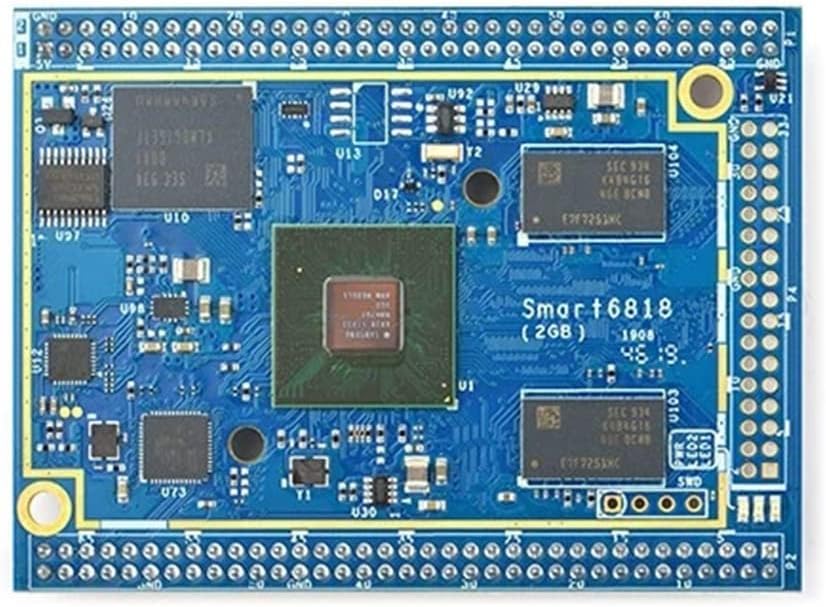

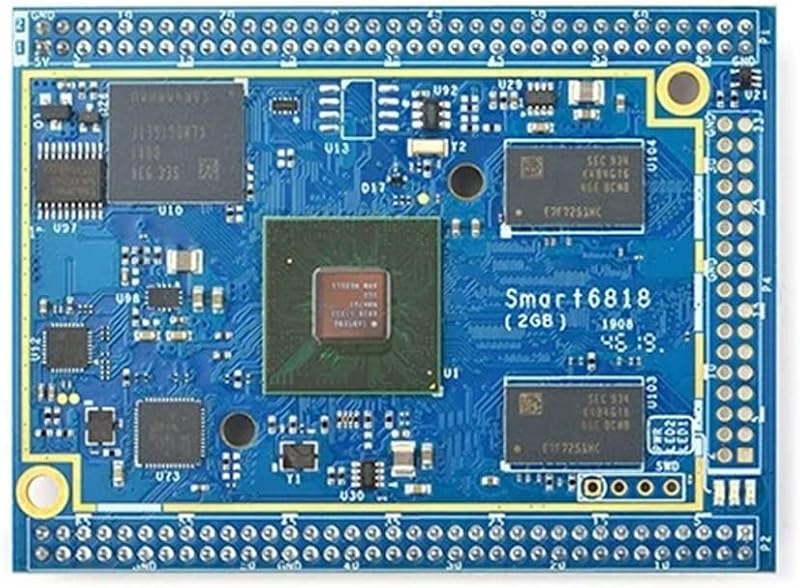

Gathukila Smart6818 Core Board

This Gathukila Smart6818 core board features the S5P6818 A53 eight-core processor, offering 2GB of RAM and 16GB of eMMC storage. It is designed for learning and development projects.

Key Features

• Processor: S5P6818 A53 Eight Core
• Memory: 2GB RAM
• Storage: 16GB eMMC
• PMU Power Management: Supports software shutdown and sleep modes.
• Data Connection: Gigabit Ethernet interface (RTL8211E chip).
• Audio: Integrated audio chip with microphone input and headphone output.
• Display Output: RGB Parallel I/F (24 bit), LVDS, and HDMI 1.4a.
• Video Input: MIPI-CSI camera interface.
• Peripheral Interfaces: USB 2.0 x1, OTG x1, SDIO/SD 3.0 x2, SPI x2, I2C x3, UART x5, PWM x3, GPIOs x24.
• Other Inputs/Outputs: Power key input, RESET input, RESET output, battery input.
• LED Indicators: Power (red) x1, Status (green) x2.
• Operating Temperature: -20°C to 70°C.
• Power Supply: 5V/2A.
• System Support: Friendly Core (based on ARM), uboot, Lubuntu, Android.
• PCB: 8-layer, gold deposition process.
• Size: 74 x 55mm.
• Color: Blue.

Specifications

• CPU: S5P6818
• Core: Eight Core A53
• RAM: 2GB
• eMMC: 16GB
• Ethernet: 10/100/1000 Mbps
• ADC: 7 channels, 12-bit, input range 0~1.8V
• Fixing Holes: 2 for radiator.
• On Board: Temperature control resistor.

Package Contents

• 1 x Smart6818 core board

Please note that only the package content listed above is included. Other products are not part of this offer.
