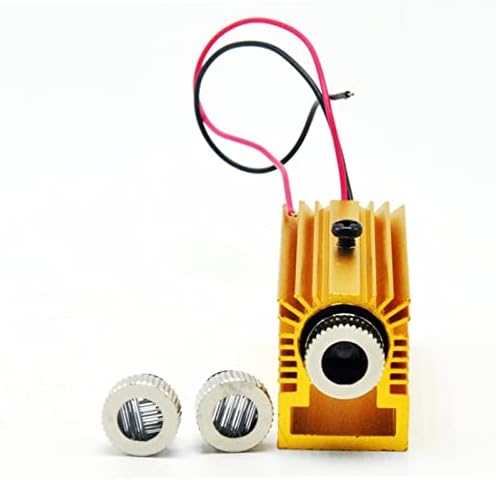

Focusable 650nm 5mW Red Laser Module Dot Line Cross w/ Heatsink 12x35mm

Product Overview

This 650nm red laser diode module is a versatile industrial electronic component suitable for laboratory use, DIY projects, and industrial testing. It features a focusable beam and can project a dot, line, or cross shape.

Key Features

• Wavelength: 650nm
• Output Power: 5mW
• Laser Shape: Dot / Line (120-degree lens default) / Cross
• Focusable: Yes
• Dimensions: 12x35mm module with 12mm heatsink
• Material: Metal

Specifications

• Module Parameters:
• Working Voltage: 3-5V
• Operating Current: Less than 45mA
• Working Temperature: +15 to +35 degrees Celsius
• Divergency: 2mm at 1 meter

Care Instructions and Safety

To ensure clear and bright laser beams, please keep the lens clean. Before undertaking any laser DIY activities, it is essential to read the technical information and wear appropriate eye protection. Ensure you have experience in optics DIY or testing before use. This module requires careful handling. The red wire is the positive pole (+) and the black wire is the negative pole (-). Always avoid direct eye contact and wear 650nm protection goggles when working with this laser.

Package Contents

• 1 x Focusable 5mW 650nm Red Laser Diode Module (Dot/Line/Cross) 12x35mm
• 1 x 12mm Heatsink
