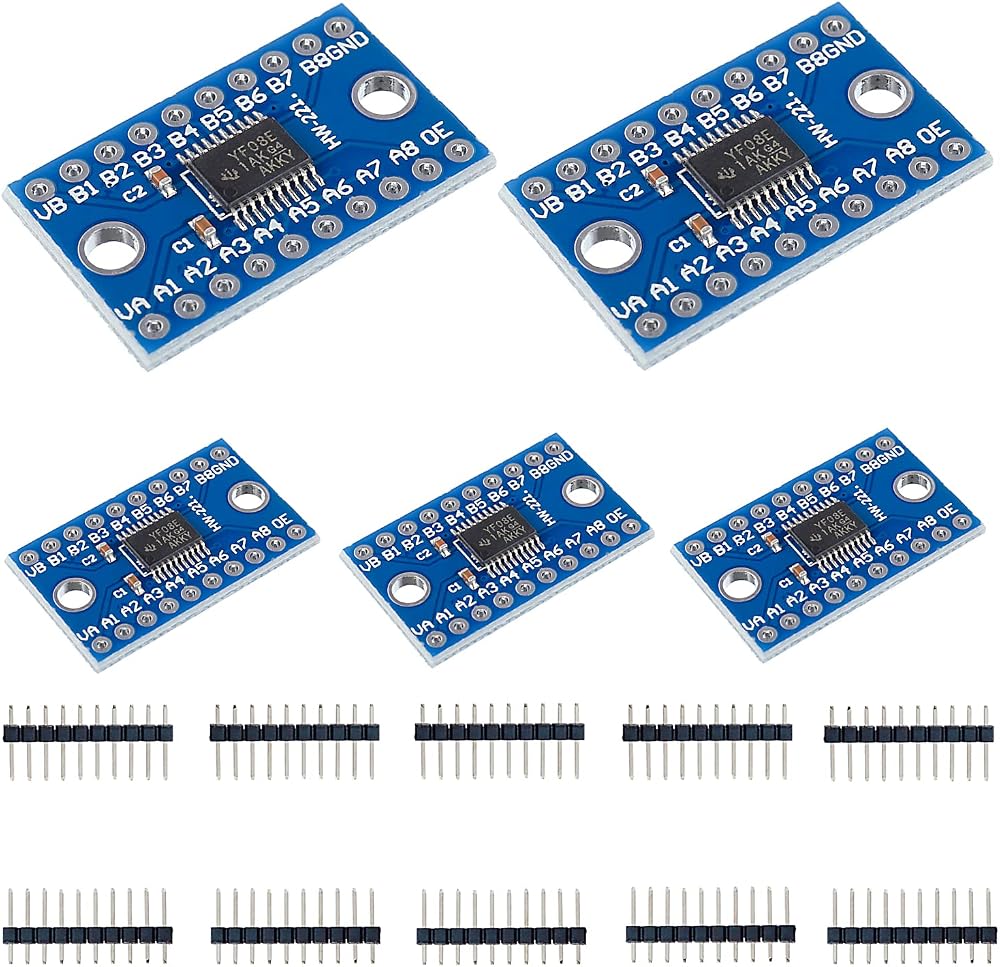

EPLZON TXS0108E 8 Channel Logic Level Converter Module 3.3V 5V Bi-Directional

EPLZON TXS0108E 8 Channel Logic Level Converter Module

This module is a bi-directional voltage-level translator designed for translating logic voltage levels between different systems. It features 8 channels and supports full-duplex communication.

Key Features

• Channels: 8-Channel
• Direction: Bi-Directional, Full Duplex
• Voltage Compatibility: Supports conversion between 1.2V-3.6V (VCCA) and 1.65V-5.5V (VCCB)
• Common Conversions: Capable of 3.3V to 5V, 1.8V to 3.3V, and other standard conversions
• No Direction Control: Does not require a separate direction-control signal
• Power Sequencing: No specific power-supply ramp order required (VCCA or VCCB can be powered first)
• Output Enable: Output-enable (OE) input can place all outputs in a high-impedance state when low
• Logic Types: Supports both open-drain and push-pull CMOS logic outputs
• Compatibility: Ideal for use with Raspberry Pi, Arduino, MCUs, I2C, and SPI serial devices

Main Applications

• 5V and 3.3V MCU module integration
• 3.3V and 5V MCU module integration
• General communication interface level conversion
• MCU and SD card communication level conversion
• SCM, I2C, SPI serial device level conversion
• OE active high enable is recommended for low-voltage side IO ports

Package Includes

5 Sets of EPLZON TXS0108E High Speed Full Duplex 8 Channel Logic Level Bi-directional Converter Modules
