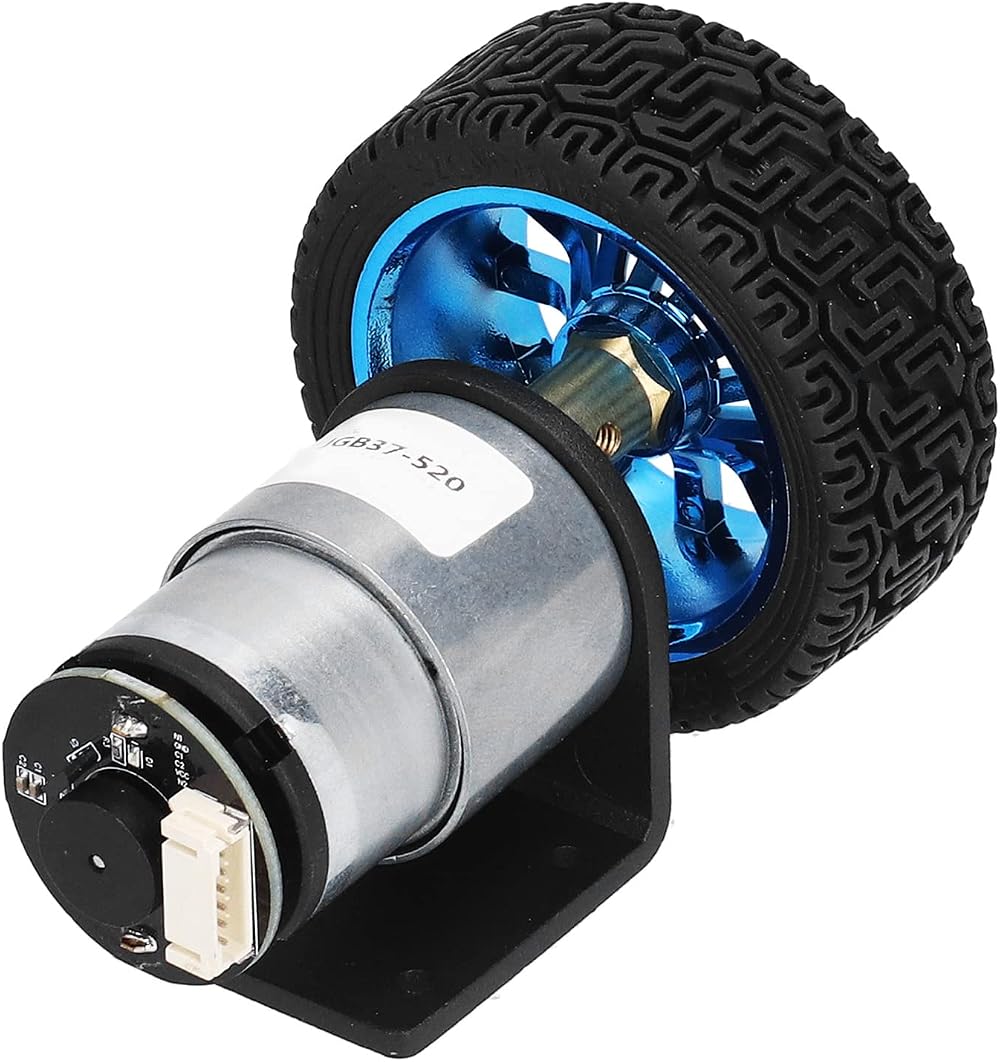

Keenso DC 12V Encoder Motor Gear Motor for Balance Car Robot Printer 1000RPM

Keenso Encoder Motor Set JGB37-520

This Keenso Encoder Motor Set features a high-accuracy DC gear motor designed for balance cars, DIY smart cars, and electric toys. It offers reliable performance with multiple accuracy machining, strict balance tests for quiet operation, and a high-strength magnetic tile for strong power and torsion.

Key Features

• High Accuracy Machining: Features a high-accuracy shaft with strict dynamic and static balance tests for smooth, low-noise operation.
• High Strength Magnetic Tile: Provides long life, strong power, and large torsion.
• Fully Enclosed Structure: Compact and lightweight design saves space.
• Pure Copper Material: Pure copper winding and coupling ensure low resistance, quiet and durable operation, with low heat generation and loss.
• D Shaft: Equipped with a 6mm D-shaped shaft for secure connections.

Specifications

• Brand: Keenso
• Model: JGB37-520
• Material: Brass, Copper, Magnetic Tile
• Purpose: Balance Car, DIY Smart Car, Electric Toys
• Operating Voltage: DC 12V
• Shaft Diameter: Approx. 6mm / 0.2in (D Shaft)
• Shaft Length: Approx. 15.5mm / 0.6in
• CW CCW: Supported
• Motor Speed: 1000 RPM (No Load)
• Encoder Pulses: 11 pulses per circle

Encoder Connection

• Red: Motor power + (CW CCW by swapping with white)
• Black: Encoder power supply -
• Yellow: Signal line (11 pulses per circle)
• Green: Signal line resolution (11 x reduction ratio = resolution)
• Blue: Encoder power supply +
• White: Motor power - (CW CCW by swapping with red)
