eMagTech KY-024 Linear Magnetic Hall Effect Sensor Module Analog Digital Output

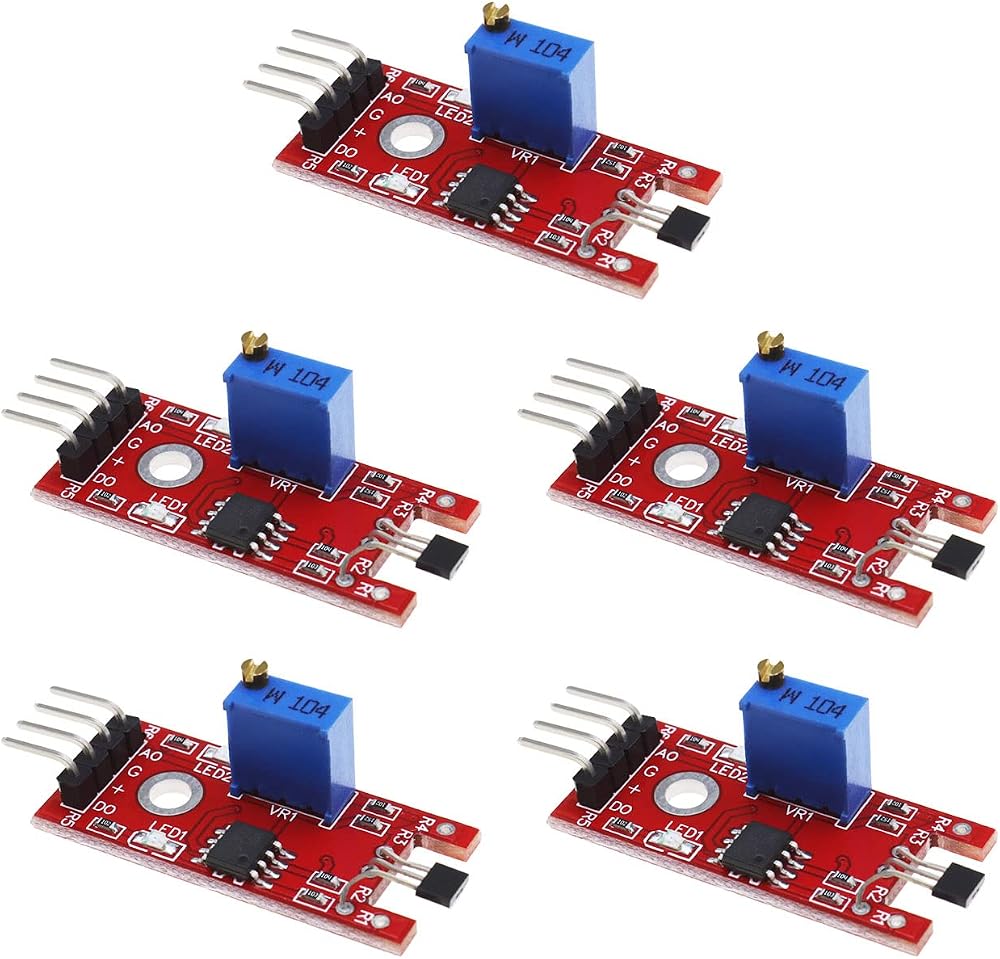

eMagTech KY-024 Linear Magnetic Hall Effect Sensor Module

The eMagTech KY-024 is a versatile linear magnetic Hall effect sensor module designed for a wide range of applications. It features adjustable sensitivity via a potentiometer and provides both analog and digital signal outputs, making it compatible with popular microcontrollers like Raspberry Pi, ESP8266, and others.

Key Features

• Universal Hall Sensor Module: Suitable for various sensing tasks.
• Adjustable Sensitivity: Integrated potentiometer allows fine-tuning of sensor response.
• Dual Output: Provides both analog and digital signals.
• High-Quality Components: Includes A3141 chipset, 3144 linear Hall-Effect sensor, LM393 dual differential comparator, potentiometer, two LEDs, and six resistors.
• Microcontroller Compatible: Works seamlessly with Raspberry Pi, ESP8266, and other microcontrollers.
• Signal Output Indicators: Features signal output instructions and an effective low-level signal output.
• Sensitivity Adjustment: Pure tone sensitivity adjustment for precise control.
• Circuit Board Output: Output switch quantity directly controllable by SCM (Single Chip Microcomputer).
• Operating Voltage: DC 5 V.

Applications

• Temperature control systems
• Proximity switches
• Detection alarms
• Rotary encoders
• Various household appliances
