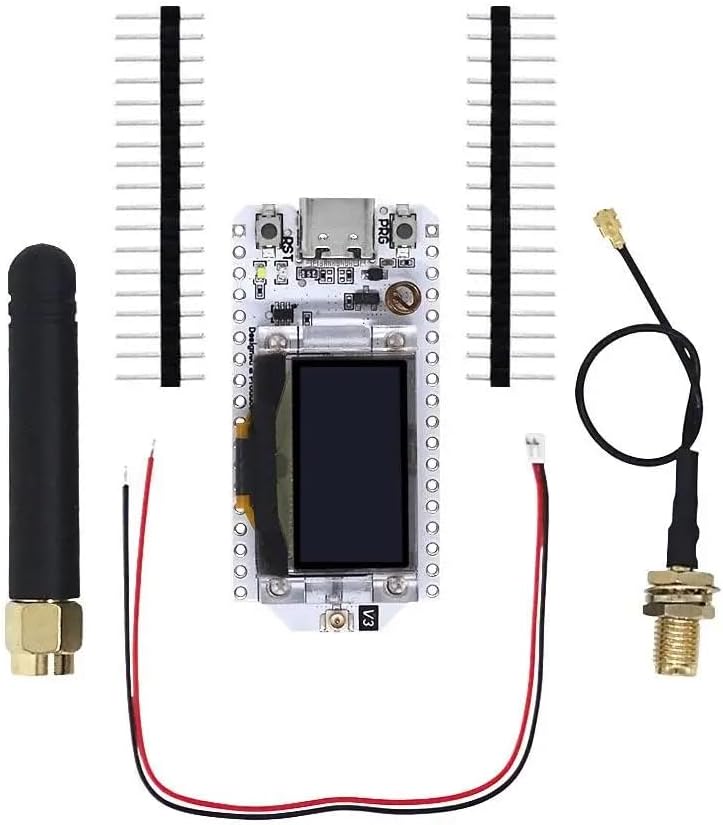

DollaTek 868-915MHz LoRa SX1262 ESP32 Development Board 0.96 OLED

The DollaTek LoRa development board combines an ESP32 microcontroller with SX1262 LoRa transceiver for high performance IoT projects. Includes a 0.96 inch OLED display for real time status and debugging. Compatible with Arduino development environment.

Key Features

• Brand: DollaTek
• Module: LoRa SX1262 + ESP32
• LoRa Frequency: 868-915 MHz
• Display: 0.96 inch OLED
• Wi-Fi & Bluetooth: 802.11 b/g/n HT40, dual-mode Bluetooth (Classic + BLE)
• Master Chip: ESP32 with Tensilica LX6 Dual Core
• RAM/Flash: 520 KB SRAM, 32 Mbits Flash
• Operating Voltage: 3.3–7V
• Operating Temp: -40 to 90 °C
• Throughput & Receiver: UDP throughput up to 135 Mbps; sensitivity -139 dBm (SF12, 125 kHz)

Specifications

• Dominant Frequency: 240 MHz
• CPU: Tensilica LX6 Dual Core @ 240 MHz
• Resolution & Display: 0.96" OLED panel
• LoRa Chip: SX1262
• Supported Modes: Sniffer, Station, SoftAP, Wi-Fi Direct
• Development Environment: Arduino compatible

Package Includes

• 1 x SX1276 ESP32 LoRa OLED development board module
• 1 x 868-915 MHz antenna

Ideal for Meshtastic projects and IoT development requiring long-range LoRa communication, Wi-Fi connectivity, and an onboard display for status and debugging information.
