DollaTek 5x 8 Channel I2C Logic Level Converter Module Bi-Directional for

Product Overview

Safely connect devices with different voltage levels using the DollaTek 8 Channel I2C IIC Logic Level Module Converter. This bi-directional converter is ideal for interfacing 3.3V devices with 5V systems, and vice-versa, ensuring reliable communication for your Arduino and other microcontroller projects. It also supports 2.8V and 1.8V systems.

Key Features

• Bi-Directional Conversion: Simultaneously steps down 5V signals to 3.3V and steps up 3.3V signals to 5V.
• Multi-Voltage Support: Compatible with 5V, 3.3V, 2.8V, and 1.8V systems.
• 8 Channels: Provides 4 channels for high-side conversion and 4 channels for low-side conversion.
• Easy to Use: Requires power from both voltage sources (HV and LV) and ground (GND).
• Compact Size: Dimensions of 28 x 19mm (1.1 x 0.74 inch).

Specifications

• Brand: DollaTek
• Channels: 8
• Interface: I2C / IIC
• Functionality: Bi-Directional Logic Level Conversion
• Supported Voltages: 5V, 3.3V, 2.8V, 1.8V
• Dimensions: 28 x 19mm / 1.1 x 0.74 inch

Package Includes

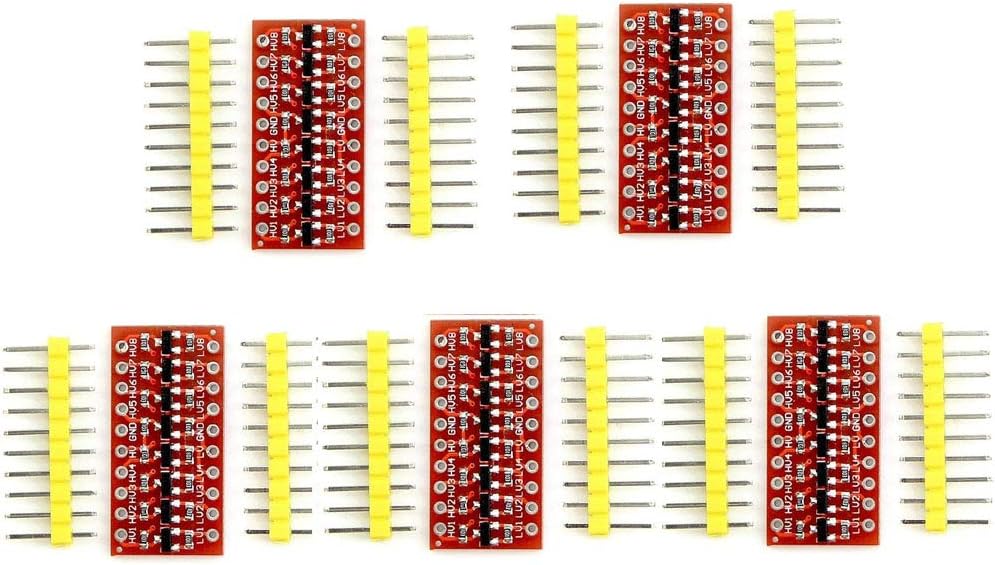

5 x DollaTek 8 Channel I2C IIC Logic Level Converter Module
