DJI Power Adapter Module MPPT for Solar Panels DJI Power 1000 2000 500

Overview

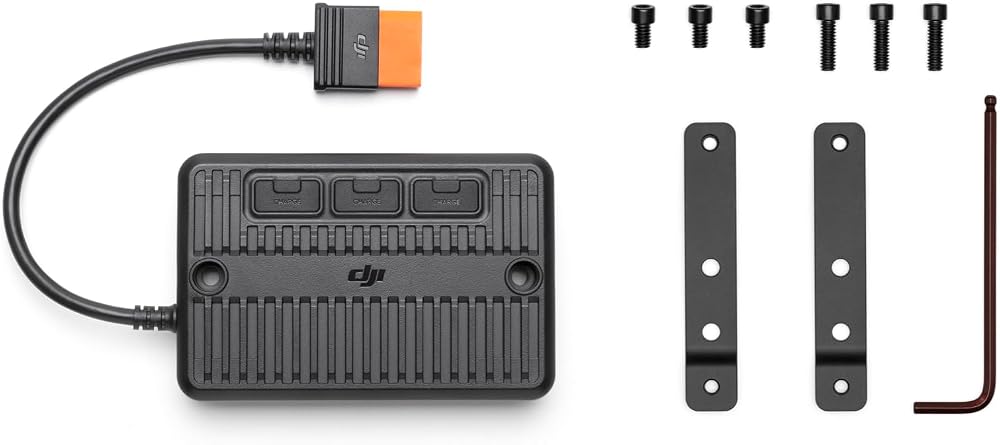

This DJI Power Adapter Module, featuring MPPT technology, enables eco-friendly solar recharging for compatible DJI Power series devices when connected to DJI-certified Zignes solar panels. It efficiently converts solar energy to power your DJI Power stations.

Compatibility

• DJI Power 1000 V2
• DJI Power 2000
• DJI Power 1000
• DJI Power 500

Key Features

• MPPT Technology: Maximizes solar energy harvesting.
• Multiple Panel Support: One MPPT module can connect up to three solar panels.
• Heat Dissipation: Includes a metal heat dissipation bracket for use with solar panels.

Important Usage Guidelines

• Non-DJI Solar Panels: When using solar panels not officially recommended by DJI, ensure the open-circuit voltage is less than 30 V. The power output of each individual solar panel should not exceed 200 W. The total output power for all solar panels connected to the MPPT module is capped at 400 W.
• DJI Power 500 Compatibility: When used with the DJI Power 500, the maximum total output power of solar panels connected to the adapter module must not exceed 300 W.
• Installation: Always install the included metal heat dissipation bracket when using solar panels with the MPPT module.

Specifications

• Max Input Current:
  • Single Channel: 10 A
  • Triple Channels: 20 A
• Operating Temperature: -10° to 45° C (41° to 113° F)
