Digitus CAT 6 Wall Outlet Flush Mount RJ45 Network Socket White Gigabit PoE

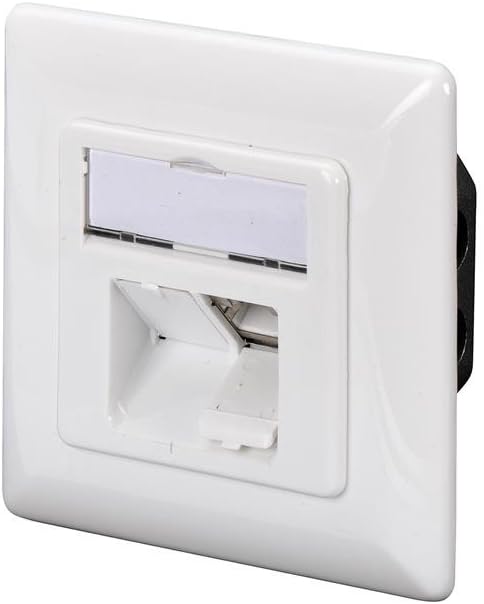

Digitus CAT 6 Wall Outlet

This Digitus network connection box offers flexible installation options, suitable for flush-mounted installations or use within trunking. With an optional surface-mounted frame, it can also be adapted for surface mounting.

Gigabit Network Capability

The shielded Ethernet network socket supports Power over Ethernet (PoE) and is Category 6 compliant, enabling stable gigabit connections of up to 1 Gbit/s (1000 Mbit/s).

Design Compatibility

This LAN box is designed to be compatible with standard switch ranges from other manufacturers. The frame of the flush-mounted box measures 80 x 80 mm, with a central plate of 50 x 50 mm.

RJ45 Connections

• Two RJ45 sockets are inclined at a 40° angle.
• This design provides improved strain relief, easier handling, and a tidier appearance.
• No Keystone modules are required for installation.

Horizontal Cable Feed

• Network installation cables are fed horizontally into the data socket.
• Secure fixing is achieved using integrated cable clamps.
• Suitable for data cables with a conductor cross-section of AWG 22-26.

Specifications

• Brand: Digitus
• Category: CAT 6
• Mounting Type: Flush Mount
• Color: White
• Connections: 2 x RJ45
• PoE Support: Yes
• Frame Dimensions: 80 x 80 mm
• Central Plate Dimensions: 50 x 50 mm
• Cable Cross-section Support: AWG 22-26
