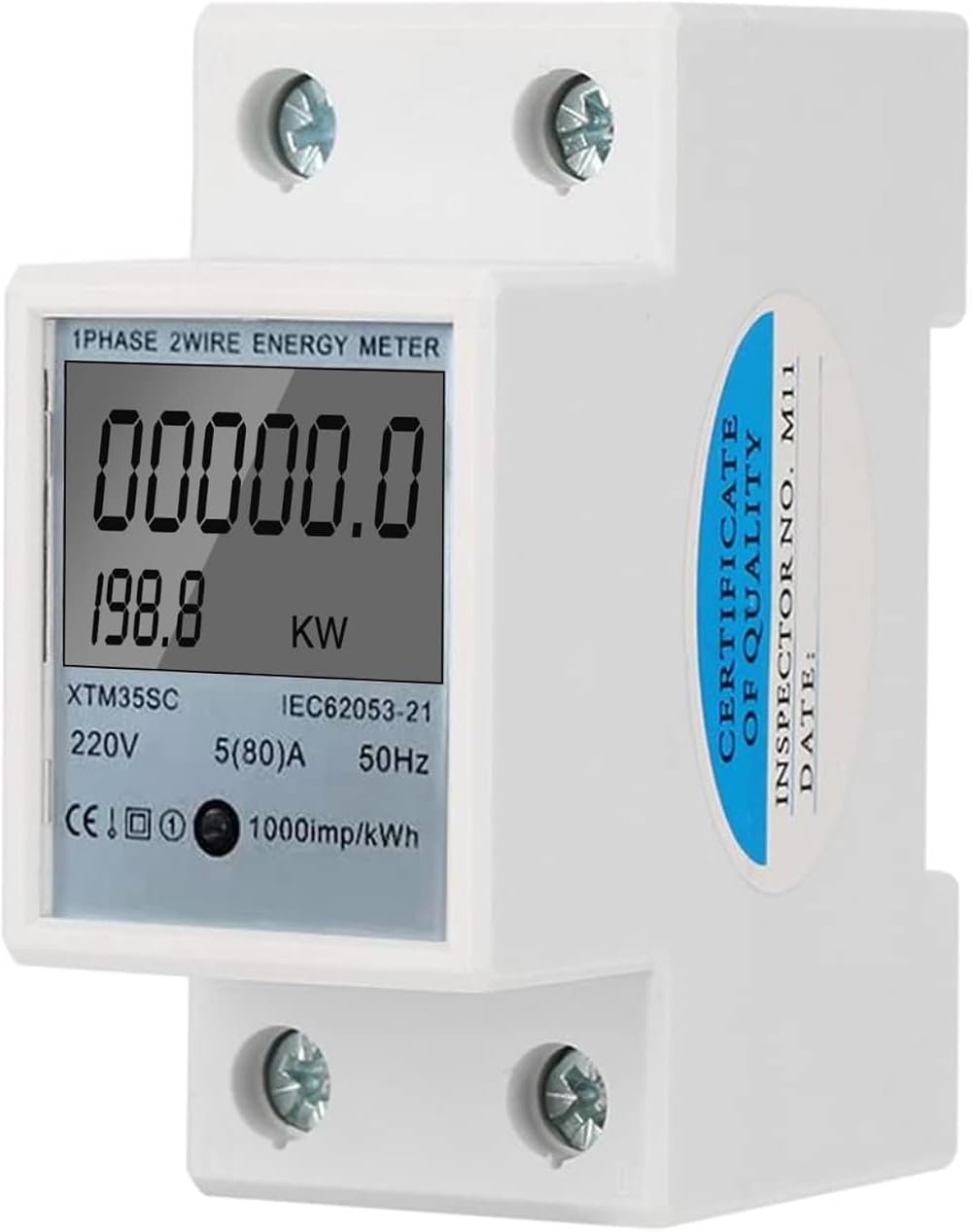

DEWIN KWh Meter 220V 5(80)A Digital Single Phase 2 Wire DIN Rail Electric Meter

DEWIN Digital Single Phase KWh Energy Meter

This DEWIN KWh Din Rail Meter is a precise digital single-phase energy meter designed for accurate measurement of electricity consumption. It features advanced SMT technology for excellent anti-electromagnetic interference, stable readings, and strong overload capacity. The blue backlit LCD display ensures easy readability, even in low light conditions, and offers optional display of voltage, current, frequency, and power factor.

Key Features

• Precision SMT Technology: Offers good anti-electromagnetic interference, stable readings, and strong overload capacity.
• Blue Backlit LCD Display: Easy to read, with optional display of voltage, current, power, frequency, and power factor.
• Standard DIN Rail Installation: Built-in terminal cover, installs on a standard 35mm DIN rail, complying with DIN EN50022 and DIN43880 standards.
• Safety Protection: Single-phase measurement for both one-way lines, calculates power safely regardless of load current direction, complying with GB/T17245.321-2008 standards.

Specifications

• Brand: DEWIN
• Voltage: 220V
• Current Rating: 5(80) A
• Phase: Single Phase
• Wire Configuration: 2 Wire
• Mounting Type: 35mm DIN Rail
• Frequency: 50Hz or 60Hz

Applications

This electricity meter is ideal for indoor measurement of single-phase communications and is widely used in energy management systems, industry, and switchgear applications.
