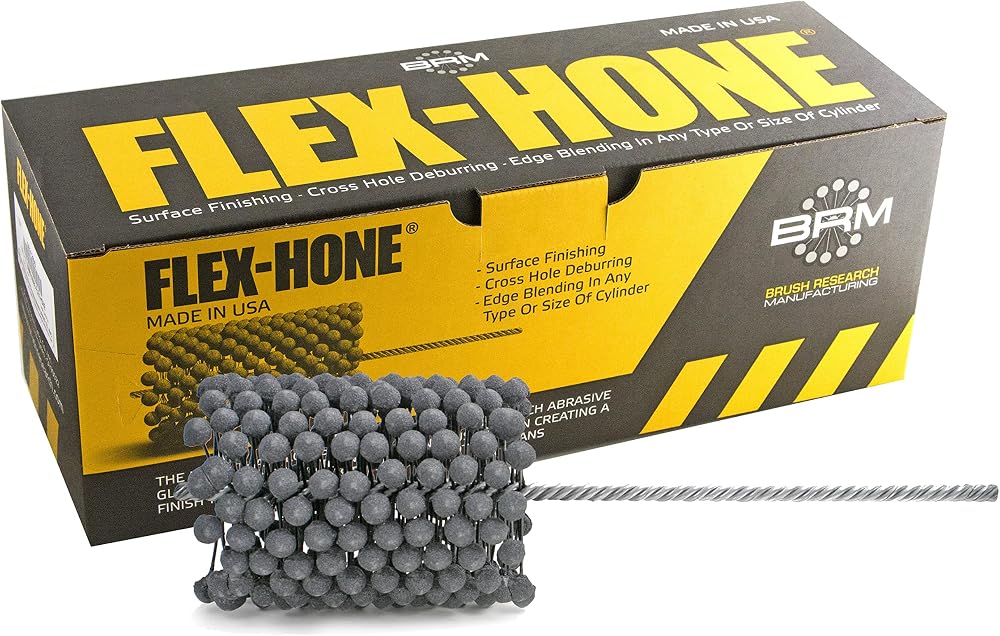

Flex-Hone Cylinder Hone GBD Series 3-3/4" 240 Grit Silicon Carbide

Flex-Hone Cylinder Hone GBD Series

The Flex-Hone tool, originally developed by Brush Research Manufacturing, is designed for deglazing cylinder walls and achieving a plateau finish. Introduced in 1972, this tool is also known by various nicknames such as ball hone, glaze breaker, and bead brush. It creates an oil-holding cross-hatch pattern and a true plateau finish, free from torn or folded metal. The Flex-Hone is suitable for all types and sizes of cylinders, with standard diameters ranging from 4mm to 36 inches.

Key Features

• Series: GBD
• Abrasive Type: Silicon Carbide
• Diameter: 3-3/4 inches (95 mm)
• Grit Size: 240
• Produces an oil-holding cross hatch pattern and plateau finish
• Eliminates peaks for rapid ring seating and improved oil control
• Reduces seepage in hydraulic and pneumatic applications
• Enhances seal performance and extends seal life
• Self-centering, self-aligning, and self-compensating for wear
• Effective for deburring cross drilled holes, port radiusing, and edge blending

Applications

The Flex-Hone is highly effective in numerous applications, including:

• Firearm chambers
• Shotgun barrels
• Musical instruments
• Combustion chambers
• Air compressors
• Pumps
• Valve bodies
• Valve guides
• Brake cylinders
• Wheel cylinders

This tool can be integrated into machining processes for a complete cylinder finish in one operation or used as a secondary operation.
