BIQU Orbiter V2.0 Extruder Double Gear Direct Drive 3D Printer Part

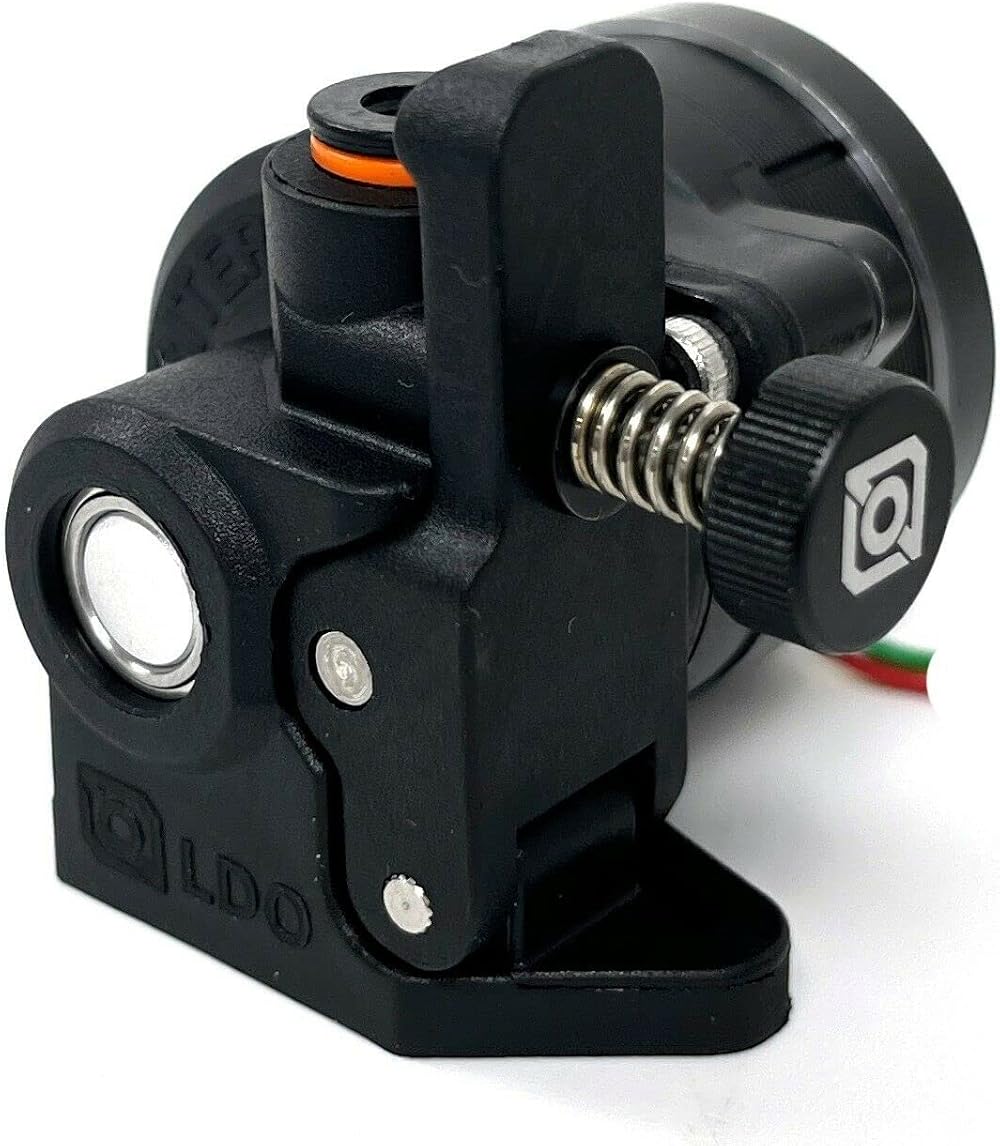

BIQU Orbiter V2.0 Extruder

The BIQU Orbiter V2.0 is an advanced direct drive extruder designed for enhanced 3D printing performance. It features upgraded components and a more compact design for improved functionality and reliability.

Key Features

• Shorter Drive Gears: 11mm drive gears for precise filament control.
• Hardened Filament Drive Gears: Manufactured by Bondtech for durability.
• Reduced Weight: Approximately 135 grams for a lighter print head.
• Compact Dimensions: 11.6% shorter for a smaller, more efficient profile.
• Increased Pushing Force: Approximately 40% greater pushing force and improved acceleration performance.
• Flipped Drive Gears: Filament path is closer to the extruder center for balanced design and compatibility with delta printers.
• Stainless Steel Filament Exit Guide: 0.2-0.3 mm clearance to drive gears, optimized for TPU printing and extreme wear resistance with abrasive filaments.
• Temperature Resistant Housings: Made from GPA12 for high-temperature environments.
• Machined PEEK Secondary Drive Gear Sleeve: Ensures smooth and consistent operation.
• Tension Mechanism: Features a grab screw design (Captive Grab Screw).
• Optimized Mounting: Mounting screws are in line with the filament exit path, improving housing stiffness and ease of mounting.
• Perfectly Aligned Filament Path: Ensures smooth filament movement.
• Compact PTFE Coupler: Smaller and improved bowden tube coupler.
• Rotated Motor: Motor position rotated by an additional 10 degrees for easier maintenance and assembly.
• Filament Sensor: Integrated filament sensor with auto load and unload button features.
• Mechanical Improvements: Numerous small changes enhance mechanical accuracy and modeling.
