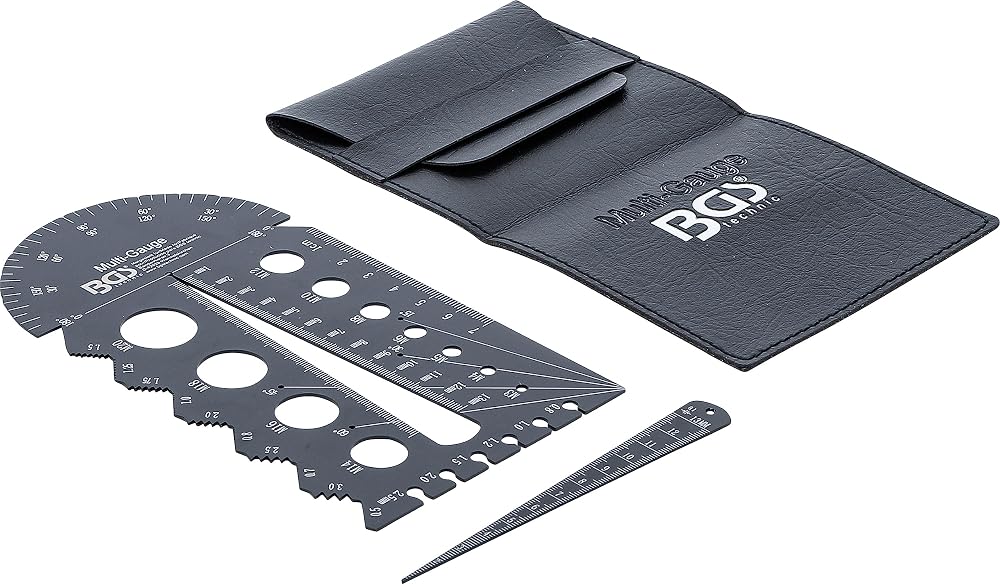

BGS 74247 Metric Screwpitch Gauge and Thread Template

A useful helper for any toolbox, this BGS screwpitch gauge and thread template allows for fast and accurate determination of dimensions for screws, bolts, drills, washers, and other round materials. Its multifunctional design in a manageable, flat card format makes it ideal for workshop use, particularly for vehicle repairs where precise measurements are essential.

Key Features

• Fast and accurate measurement of screw, bolt, drill, and round material dimensions.
• Compact and flat card format for easy handling and storage.
• Essential tool for workshops and vehicle repairs.

Specifications

• Brand: BGS
• Model: 74247
• Type: Screwpitch Gauge and Thread Template
• Standard: Metric
• Thread Size (Screws/Bolts): M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20
• Thread Pitch (Screws/Bolts): 0.5, 0.7, 0.8, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0 mm
• Drill Diameter: 0.8, 1.0, 1.2, 1.5, 2.0, 2.5 mm
• Inner Hole Diameter / Outer Diameter of Round Materials: 1 - 13 mm
• Length Measurement: 1 - 70 mm
• Angle Measurement: 0 - 180° (in 5° steps)
