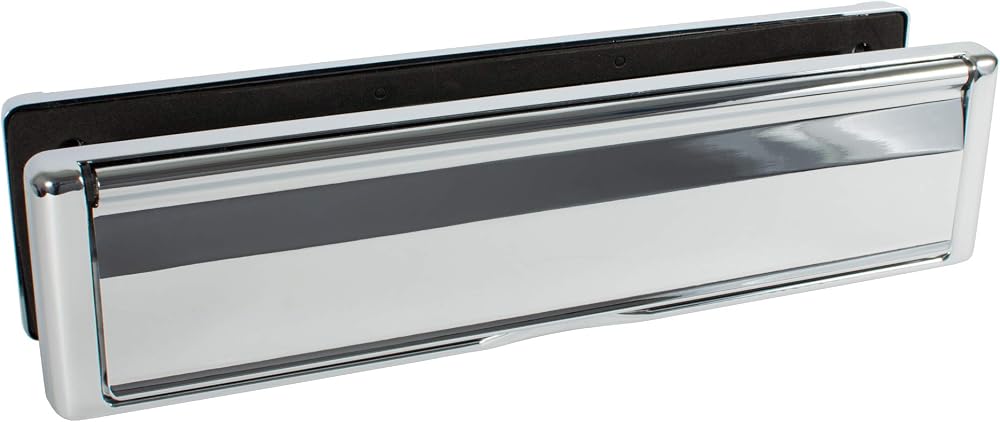

Avocet LPAFCH Affinity 12" Polished Chrome Heavy Duty Sprung Letter Plate

Avocet Affinity 12" Letter Box Plate Set

This premium Avocet Affinity 12" letter plate is designed to accommodate full A4 size mail. The external flap opens to 180° and is sprung loaded with a finger slot for easy operation. It features an external weather seal, internal draught seal, and a nylon brush for excellent protection against weather ingress. The flap and frame are constructed from high-quality zinc metal to standard BS1004A.

Key Features

• All metal flaps and matching surround
• 12 inch version accommodates full A4 size mail
• External flap opens up to 180°
• Fully sprung loaded with finger slot for easy opening
• Includes external weather seal, internal draught seal, and nylon brush seal
• Flap & Body Material: Zinc BS1004A
• Tested (flap) to 50,000 operations
• Aperture size conforms to requirements of BS EN 13724:2002

Specifications

• Brand: Avocet
• Model: Affinity LPAFCH
• Finish: Polished Chrome
• Size: 12 inch
• External Dimensions: 309mm (length) x 76mm (height)
• Internal Sleeve Size: 264mm x 50mm (minimum hole size)
• Distance between screw hole centres: 270mm
• Door Thickness Compatibility: 38mm to 70mm

What's Included

• 1 x Avocet Affinity 12" Letter Box
• 4 x Screws (two lengths supplied)

This letter box is supplied with two lengths of fixing screws and is available in White, Satin Silver, Polished Gold, Polished Chrome, and Black. Please measure your existing letter box or door aperture carefully against the provided dimensions to ensure compatibility.
