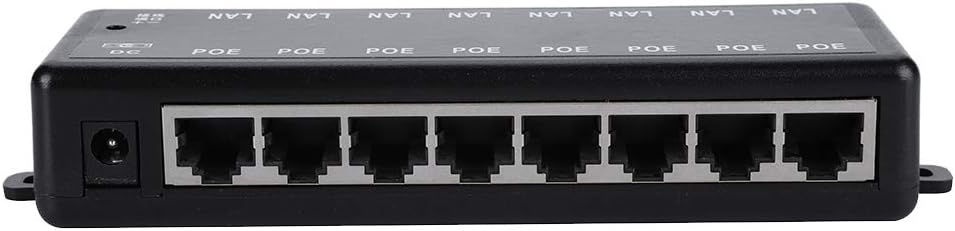

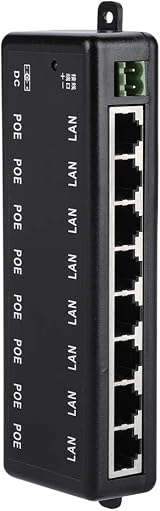

ASHATA 8 Port Passive PoE Injector DC12V-48V Power Over Ethernet Adapter Module

Product Overview

The ASHATA Passive PoE Injector is a simple and convenient solution for powering PoE and non-PoE devices over an Ethernet cable. It is designed to work with IEEE802.3af/at standard powered devices.

Key Features

• PoE Power Supply: Provides power to network devices via an Ethernet cable.
• Wide Application: Compatible with IEEE802.3af/at standard PoE powered devices such as DAHUA IP cameras and other brands. Can also be used with IEEE802.3af/802.3at standard PoE splitters for non-PoE devices.
• Easy to Use: Directly supplies power to connected network devices without auto-detection. The powered device or PoE splitter must conform to IEEE 802.3af/at standards and support PoE pin 4/5(+) and 7/8(-) midspan.
• Durable Construction: Made of sturdy plastic material for reliable use.
• Safety Standards: Conforms to international safety product standards and is safe to use.
• Quiet Operation: No fan or cooling required, protecting extra-low voltage.

Specifications

• Brand: ASHATA
• PoE Type: Passive PoE Injector
• Input Voltage: DC12V-48V
• Port Count: 8 Ports
• Standard Compliance: IEEE802.3af/at
• PoE Pinout: 4/5(+), 7/8(-) midspan
• Material: Plastic

Important Considerations

For stable operation, the total power consumption of connected devices must be lower than the total power capacity of the injector. The mains voltage should not exceed DC48V.
