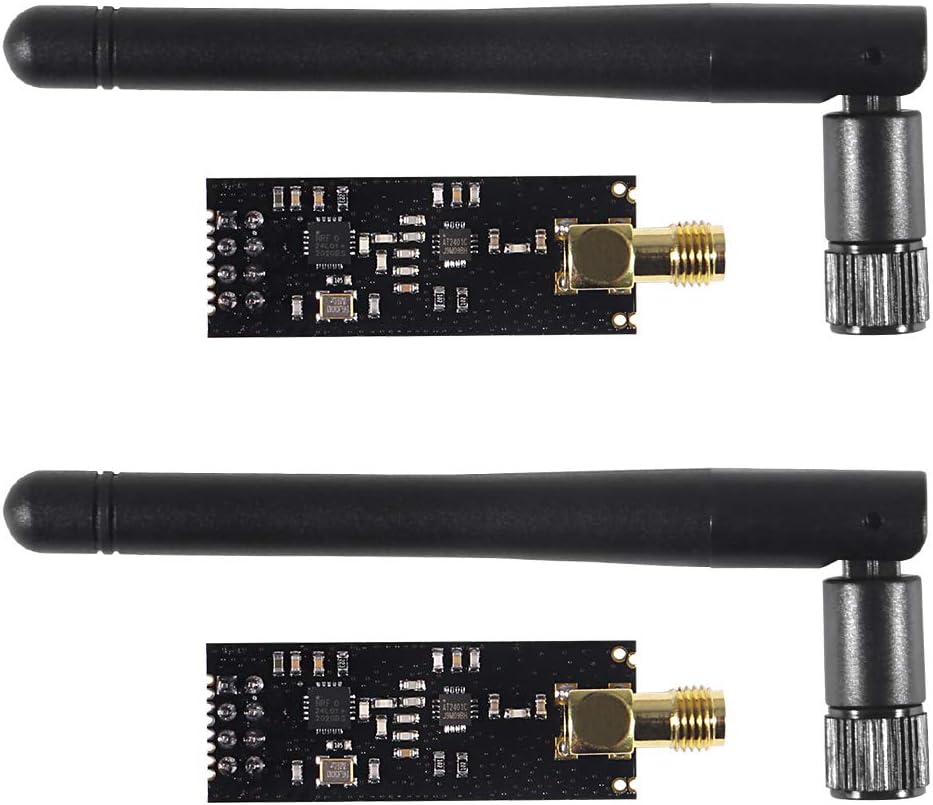

ALMOCN NRF24L01+PA+LNA 2.4G 1100m Wireless RF Transceiver Module SMA

ALMOCN NRF24L01+PA+LNA Wireless Transceiver Modules

This listing is for a 2-pack of ALMOCN NRF24L01+PA+LNA wireless transceiver modules. These 2.4GHz RF modules offer extended range and are suitable for use with Arduino and other microcontrollers.

Key Features

• Brand: ALMOCN
• Model: NRF24L01+PA+LNA
• Frequency: 2.4GHz
• Extended Range: 800+ meters line of sight
• Communication: SPI Interface
• Selectable Channels: 125
• Data Rates: 250kbps, 1Mbps, 2Mbps
• Operating Voltage: 3.0V to 3.6V
• Max Current: 115mA
• Antenna: SMA connector with included antenna
• Power Conservation: Interrupt Request (IRQ) pin for waking microcontrollers from sleep
• Compatibility: 5V tolerant SPI inputs for direct connection to Arduino

Specifications

• Operating Voltage: 3 ~ 3.6V Max
• Max Current: 115mA
• Frequency Range: 2.4GHz~2.5GHz
• Multi-frequency: 125 selectable frequency channels
• Board Dimensions: 15.5mm x 40.7mm x 12.2mm
• Antenna Dimensions (angled): 87mm x 9.5mm

Package Includes

• 2 x ALMOCN NRF24L01+PA+LNA Wireless Modules
• 2 x SMA Antennas
