Airflow iCON 30 Extractor Fan 33l/s 100mm Duct Silent Iris Shutter 10.7W

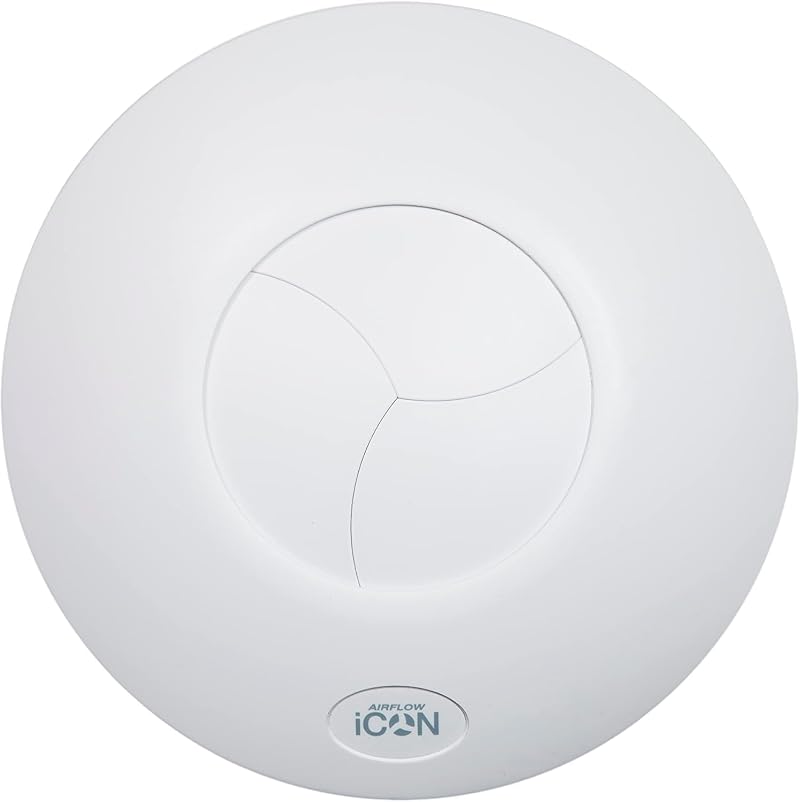

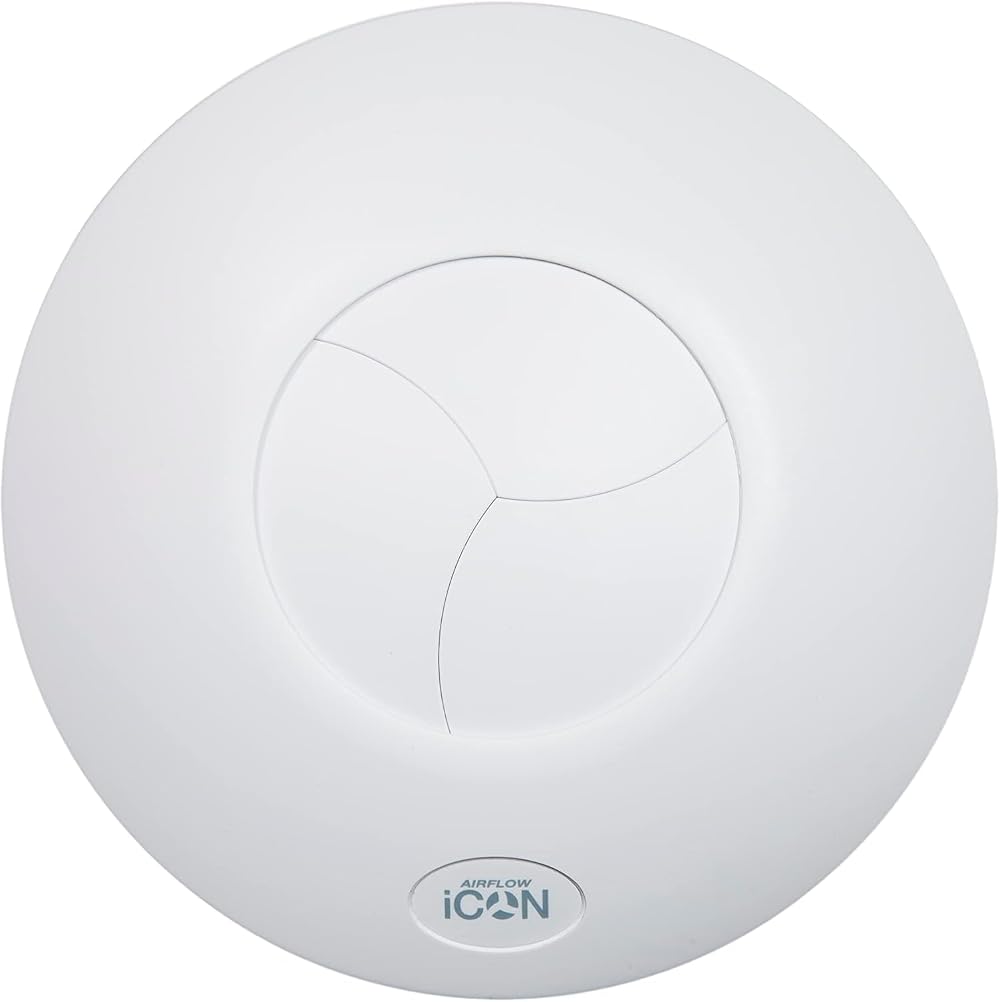

Airflow iCON 30 Extractor Fan

The Airflow iCON 30 extractor fan offers efficient and quiet ventilation for your bathroom. With an energy-saving 10.7W motor, it delivers a powerful airflow of up to 33 litres per second (121 m³/h) while maintaining a low noise level of 33.3dB at 3 meters. The innovative iris shutter automatically closes when the fan is not in use, preventing backdrafts and minimizing noise, which helps keep your bathroom warm and reduces energy bills.

Key Features

• Brand: Airflow
• Model: iCON 30
• Airflow: 33 litres per second (121 m³/h)
• Duct Size: 100mm
• Energy Consumption: 10.7W (0.062A)
• Noise Level: 33.3dB @ 3m
• Iris Shutter Technology: Prevents backdrafts and minimizes noise
• Installation Options: Requires a 160mm hole for recessed mounting (wall/ceiling) or a 110mm hole for surface mounting (wall/ceiling). Use 100mm duct for wall installations.
• Control Options: Supplied as a basic unit operated by a light switch. Optional control modules (timer, humidity, PIR, dual-speed) are sold separately.
• Color Options: Available in silver, chrome, anthracite, and navy blue.
• Warranty: 3-Year Warranty

Specifications

• Model Name: iCON 30
• Duct Diameter: 100mm
• Power Consumption: 10.7 Watts
• Airflow Rate: 33 L/s
• Noise Level: 33.3 dB @ 3m
• Hole Size (Recessed): 160mm
• Hole Size (Surface): 110mm
