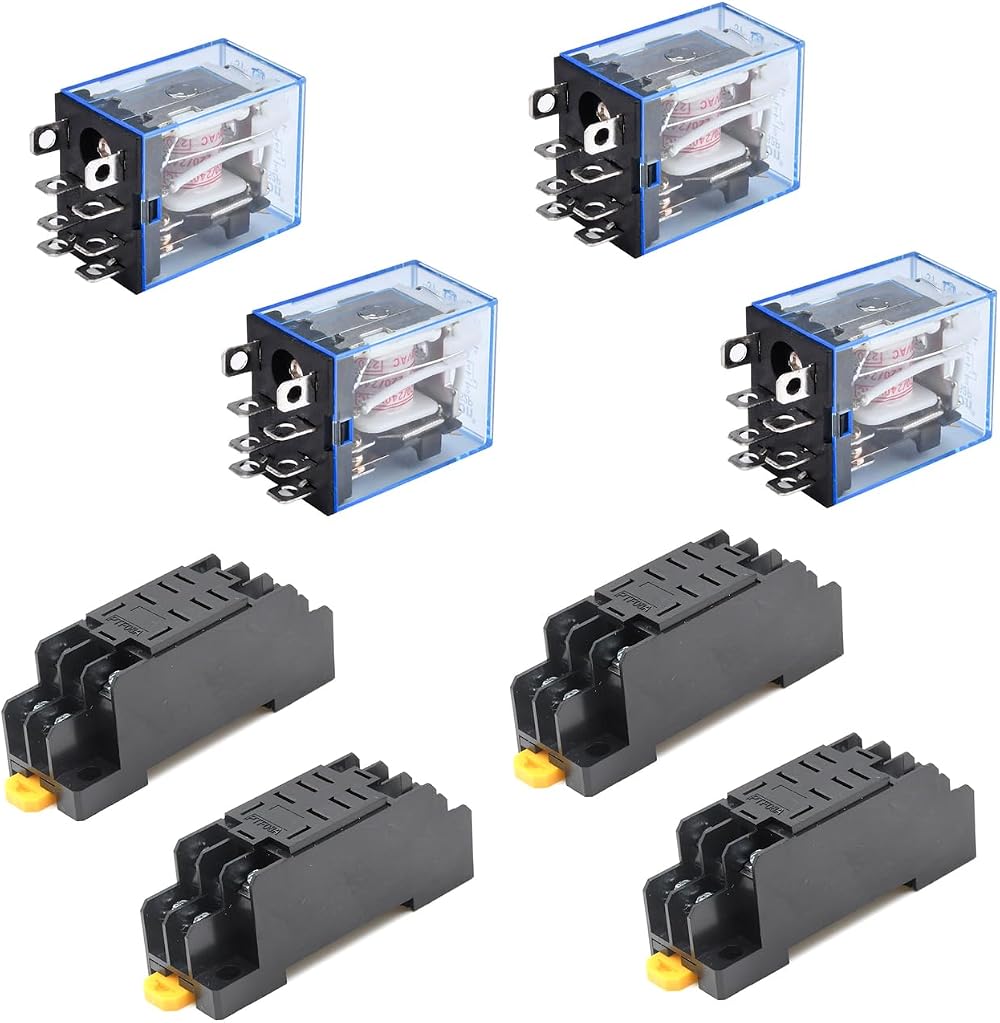

Aideepen LY2NJ Relay 4 pack with 4 sockets AC 220V 10A DPDT 8-pin

Key Features

• Brand: Aideepen
• Model: LY2NJ
• Type: Small general purpose electromagnetic intermediate relay, DPDT
• Coil voltage: AC 6 to 240 V, DC 6 to 220 V
• Contact rating: AC 10 A at 250 V, DC 10 A at 30 V
• Contact configuration: 2 Form C (DPDT)
• Base: Nylon housing; 8-position base; suitable for PCB or plug-in mounting
• Durability: Electrical lifespan up to 100,000 cycles; Mechanical lifespan up to 1,000,000 cycles
• Ambient temp: -40 to +60°C
• Weight: ≤ 35 g per relay

What You Get

• Relays: 4 pieces
• Relay bases: 4 pieces
• Instruction manual: 1 piece

Electrical and Mechanical Details

• Electrical specifications: Contact resistance ≤ 50 MΩ; Insulation resistance ≥ 100 MΩ; Dielectric strength: BOC 1000 VAC, BCC 1500 VAC
• Coil power: AC 0.9 VA to 1.2 VA; DC coil ≤ 0.9 W
• Coil polarity: Not required for AC; DC versions may require correct polarity

Notes: The DC 28 V marking indicates maximum DC voltage for contact control. This kit is designed for compact, reliable switching with multiple mounting options and robust base construction to prevent short circuits.
