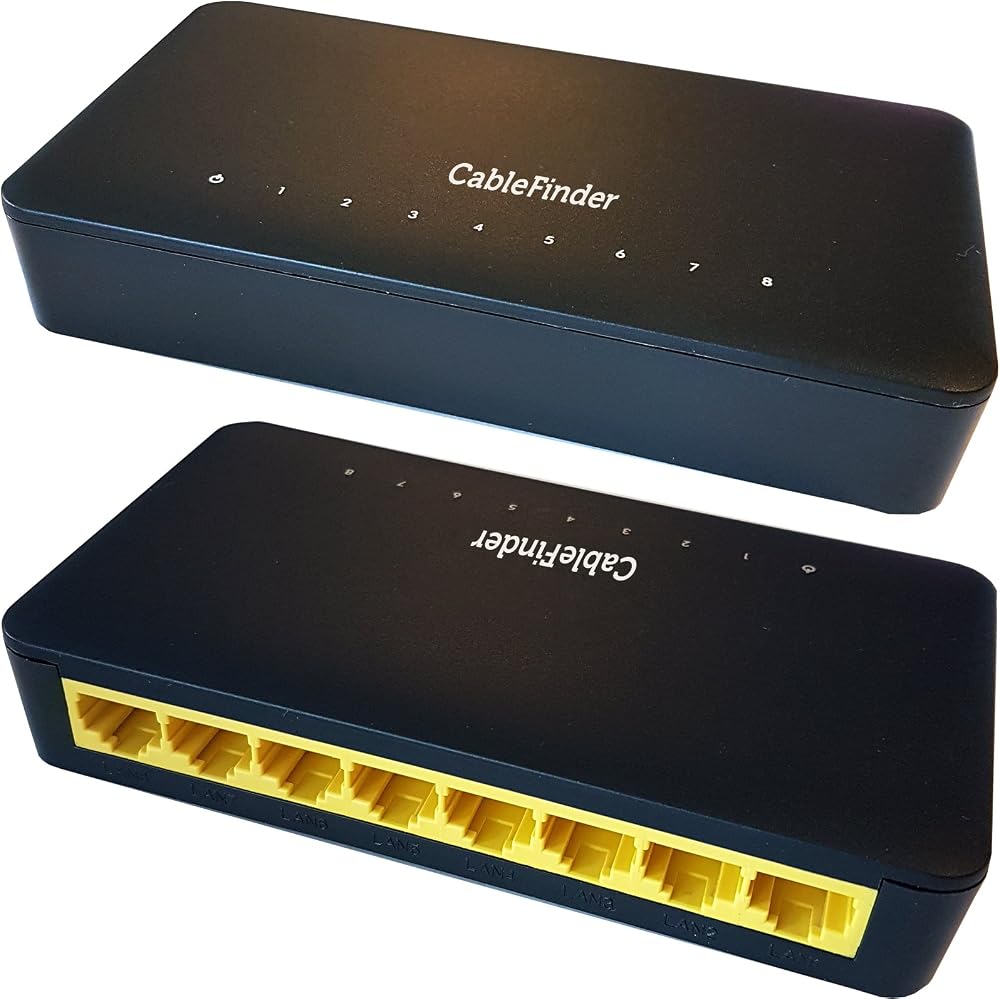

Loops 8 Port Gigabit Ethernet Network Switch 1000mbps RJ45 Cat6 Plug Play

Expand Your Network with the Loops 8 Port Gigabit Ethernet Switch

This Loops network switch is the perfect solution when you need to connect more devices to your existing network or internet connection. It's ideal for expanding the RJ45 sockets available on your router, allowing you to easily network computers for file and hardware sharing, such as printers. If you have a single network cable running into a room, this switch can increase your available connections from one to seven.

The switch is plug-and-play; simply connect an RJ45 cable from your router to the switch to expand your network. It includes a power supply for immediate setup.

Key Features

• Plug and Play: Easy setup with no software installation required.
• Gigabit Speed: Supports 10/100/1000 Mbps speeds for fast data transfer.
• 8 Port Expansion: Connect up to seven additional devices to your network.
• Auto-Negotiation: Automatically adjusts port speed and duplex mode.
• Auto-MDI/MDI-X: Eliminates the need for crossover cables.
• Silent Operation: Fan-less design ensures quiet performance.
• Compact Design: Plastic case is durable and space-saving.
• External Power Adapter: Included for convenience.
• LED Indicators: Monitor power, link, and activity status.

Technical Specifications

• Brand: Loops
• Ports: 8 x 10/100/1000 Mbps RJ45 Uplink ports
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Flow Control: IEEE 802.3x Full Duplex, Backpressure Half Duplex
• MAC Address: Auto-learning and auto-aging
• Architecture: Non-blocking switching
• Cable Distance: Up to 100m for CAT5e/CAT6 cables
• Power Supply: 12V DC 0.5A (External Adapter Included)
• Certifications: ROHS, CE

An instruction manual is supplied with the switch.
