Acogedor 600P/R Incremental Rotary Encoder Module DC 5-24V 2 Phase Displacement

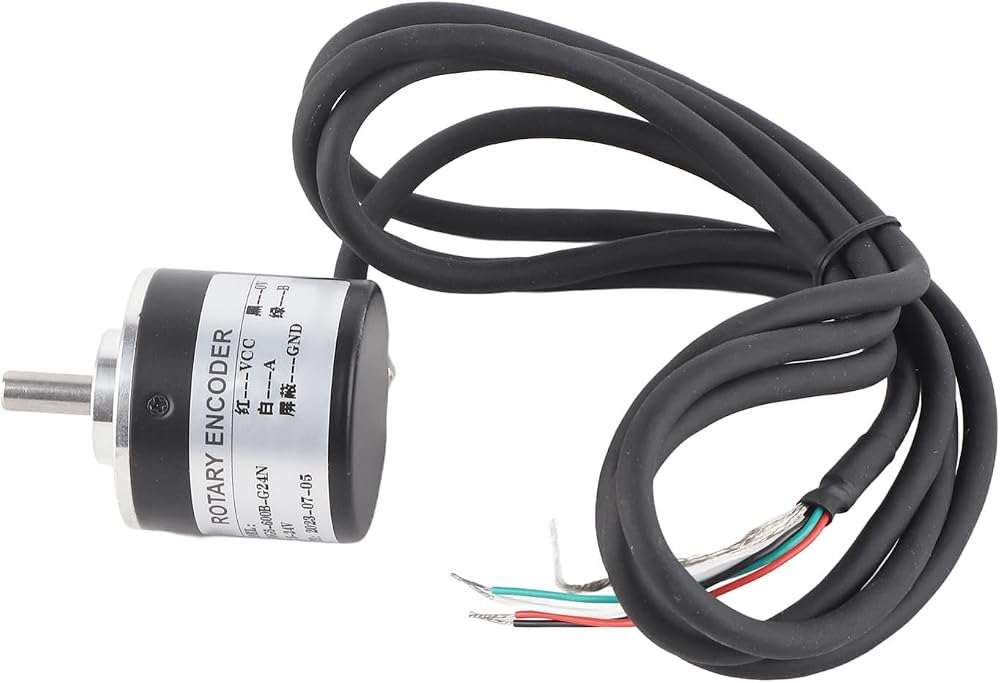

Acogedor 600P/R Incremental Rotary Encoder Module

This is a brand new 600P/R incremental rotary encoder module from Acogedor, designed for intelligent control and various displacement measurements. It offers high precision with 600 pulses per revolution and a dual-phase output.

Key Features

• Pulses: 600 P/R (single phase 600 pulses/R, double phase with 2400 pulses).
• Power Source: Compatible with DC 5-24V.
• Output: AB orthogonal pulse circuit in 2 phases, NPN open manifold output type.
• Mechanical Speed: Maximum operating speed of 5000 RPM.
• Frequency Response: 0-20KHz range.
• Cable Length: Includes a 1.5 meter cable.
• Dimensions: Compact size with 38 x 35.5 mm body and a 6 x 13mm axle.
• Wiring Identification: Green = Phase A, White = Phase B, Red = Power VDC+, Black = V0.

Specifications

• Brand: Acogedor
• Model: 600P/R Rotary Encoder
• Pulses Per Revolution: 600 P/R
• Phase Output: 2 Phase AB Orthogonal Pulse
• Output Type: NPN Open Manifold
• Power Supply: DC 5-24V
• Max Mechanical Speed: 5000 RPM
• Frequency Response: 0-20KHz
• Axle Diameter: 6mm
• Axle Length: 13mm
• Module Dimensions: 38 x 35.5 mm
• Cable Length: 1.5 m

Important Note: The 2-phase AB output should not be connected directly to VCC to prevent damage to the output triode. Terminal identification may vary between batches.

Package Includes

• 1 x 600P/R Incremental Rotary Encoder
