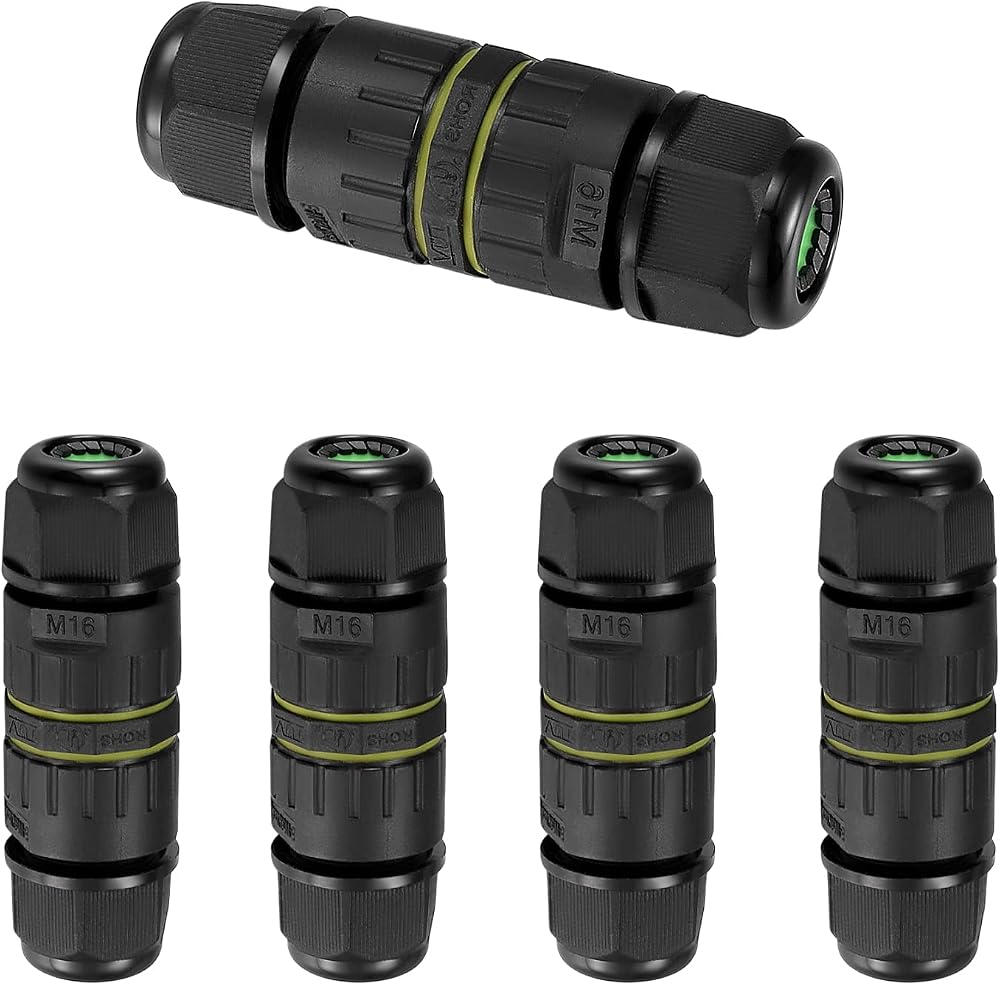

pzihao 5x 3 Pole IP68 Waterproof Junction Box Outdoor Cable Connector 6-12mm

Key Features

• Durable Material: Made of high-quality PA66 with high-temperature resistance for long-lasting use.
• IP68 Waterproof: Can be immersed in water at depths up to 10 meters for extended periods.
• Easy Installation: Simple DIY installation requiring only a screwdriver to connect wires and seal cables perfectly.
• Safe for Outdoor Use: Weatherproof design suitable for home, garden, or exterior lighting applications.

Specifications

• Product Name: Waterproof Junction Box Outdoor Cable Connector
• Brand: pzihao
• Material: PA66
• Waterproof Protection Class: IP68
• Cable Diameter Range: 6-12 mm
• Number of Poles: 3 Poles
• Nominal Voltage: Up to 250V
• Nominal Current: Up to 16A
• Working Temperature: -40°C to 95°C

Package Included

• 5 x Cable Connectors

How to Use

Connect the ground wire to hole E, live wire to L, and neutral wire to N.

1. Insert the wire into the connector.
2. Connect the core to the seal.
3. Tighten the ends of the compression caps.

Important Notes

• Always use the product within its rated voltage, current, and power range.
• Ensure the live, ground, and neutral wires are correctly matched to their corresponding holes during wiring.
• Tighten the lock nut after wiring is complete to ensure a waterproof seal.
