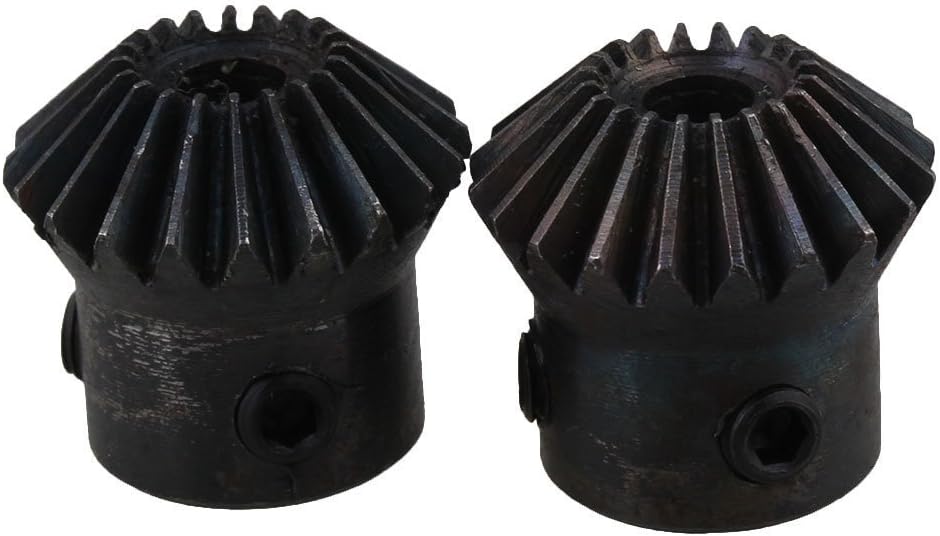

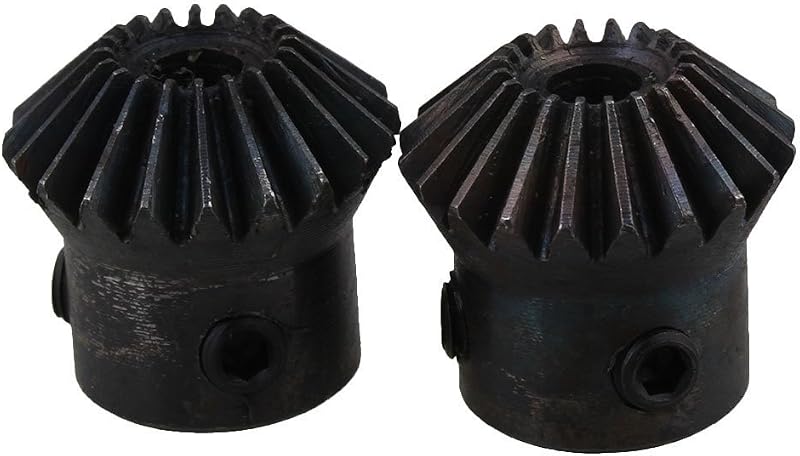

SGerste 45 Steel 20 Teeth 5mm Bore Tapered Bevel Gear Wheel Pack of 2

Product Overview

This pack includes two 45 Steel Tapered Bevel Gear Wheels from SGerste. Designed with 20 teeth and a 5mm hole diameter, these gears are ideal for various mechanical applications requiring power transmission.

Key Features

• 1 Modulus, 20 teeth, 5mm bore diameter.
• Constructed from durable 45 steel for high wear-resistance and extended service life.
• Suitable for a wide range of applications including conveying, agricultural equipment, textile machinery, printing machinery, and automotive uses.
• Important Note: These are 1:1 ratio bevel gears and can only be used with other 1:1 gear wheels. They are not compatible with gears of different moduli.

Specifications

• Color: Silver
• Material: 45 Steel
• Teeth Number: 20
• Modulus: 1
• Inner Diameter: 5mm (0.20 inches)
• Maximum Outer Diameter: 22mm (0.87 inches)
• Total Thickness: 22mm (0.87 inches)
• Base Diameter: 18mm (0.71 inches)
• Total Size: 22x22mm (0.87x0.87 inches) (Outer Diameter x Thickness)
• Weight: 55g

Package Includes

• 2 x Tapered Bevel Gear Wheel

Each inner package features a unique MPN label, confirming quality inspection and that the item is sold from our shop. Please provide this label if you require assistance.
