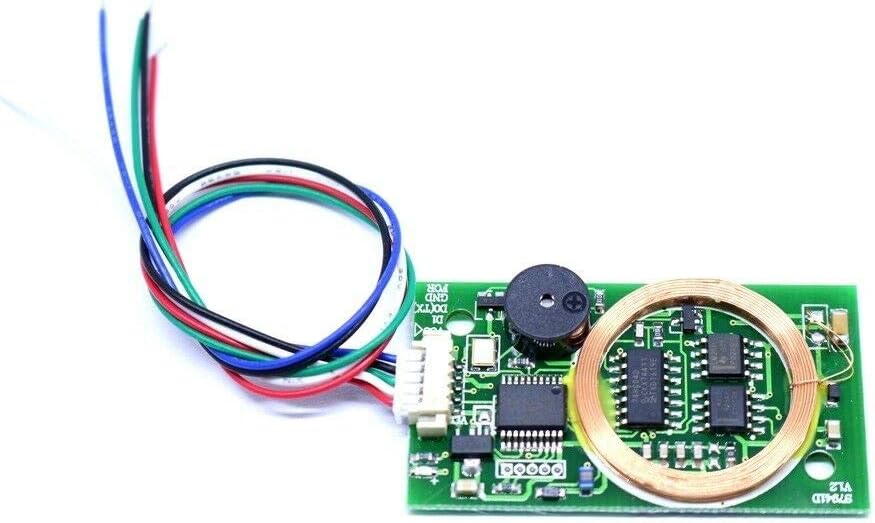

KingGo 13.56MHz 125KHz Dual Frequency RFID Reader Module WG26/34 Interface 12V

KingGo Dual Frequency RFID Reader Module

This KingGo RFID reader module supports both 13.56MHz and 125KHz frequencies, making it versatile for various access control and identification applications. It features a Wiegand 26/34 interface and operates on a standard 12V DC power supply.

Key Features

• Dual Frequency Support: Reads 125KHz (EM4100 compatible) and 13.56MHz (ISO14443A) cards.
• Wide Card Compatibility: Supports EM4100, S50, S70, DESFire, and FM1208 IC cards.
• Standard Interfaces: UART and Wiegand 26/34 (default) interfaces.
• Compact Size: Small form factor measuring 47x26x5mm.
• Integrated Indicators: Includes an indicator light and buzzer for feedback.
• Wide Operating Temperature: Functions reliably in temperatures from -20°C to 70°C.
• Power Requirements: Operates on DC12V with a current draw of 40mA.

Specifications

• Brand: KingGo
• Voltage: DC12V
• Current: 40mA
• Indicator: Yes
• Buzzer: Yes
• Support Card: 125kHz, 13.56MHz (ISO14443A)
• Interface: Uart, WG26/WG34 (Default)
• Size: 47*26*5mm
• Temperature: -20-70°C
• Read Card Distance (EM4100): >8cm
• Read Card Distance (S50 S70 IC, DESFIRE, FM1208): >5cm

Note: This module does not support any HID cards. Card reading distance is dependent on the card coil and environmental conditions.
