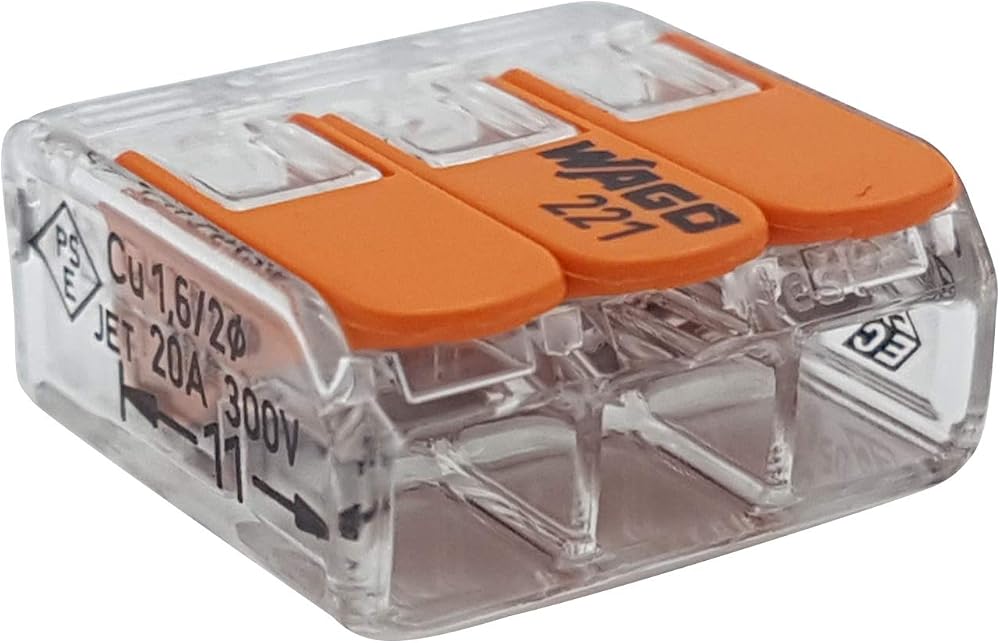

WAGO 221-413 3-Channel Lever Nut Terminal 0.2-4 mm² Transparent 100pcs

Key Features

• Brand: WAGO
• Model: 221-413
• Type: Connection terminal with lever (CAGE CLAMP)
• Number of clamping points: 3
• Potentials: 1
• Wiring: Side wiring, for solid, stranded, and fine wires
• Nominal cross section: 0.2 - 4 mm² (24 - 12 AWG)
• Color/Material: Transparent; UL 94 V2
• Temperature rating: Operating ambient up to 85°C, continuous up to 105°C
• Targeted conductors: Copper

Specifications

• Rated voltage (II/2): 450 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 32 A
• Nominal cross section: 0.2 - 4 mm² / 24 - 12 AWG
• Solid conductor: 0.2 - 4 mm² / 24 - 12 AWG
• Multi-wire conductor: 0.2 - 4 mm² / 24 - 12 AWG
• Fine wire conductor: 0.14 - 4 mm² / 24 - 12 AWG
• Stripping length: 11 mm / 0.43 in
• Total clamping points: 3
• Total potentials: 1
• Wiring type: Side wiring
• Dimensions (WxHxD): 18.7 x 8.3 x 18.6 mm

Physical & Compliance

• Color: Transparent
• Fire class: UL 94 V2
• Operating ambient temperature: 85°C
• Continuous operating temperature: 105°C
• T‑Mark: EN 60998 (T85)
• Weight: 2527 g

These WAGO 221-413 lever-nut style terminals provide reliable 3-way side wiring for copper conductors across a broad range of cross sections. They are designed for high-temperature environments and carry standard IEC/EN 60664-1 ratings.
