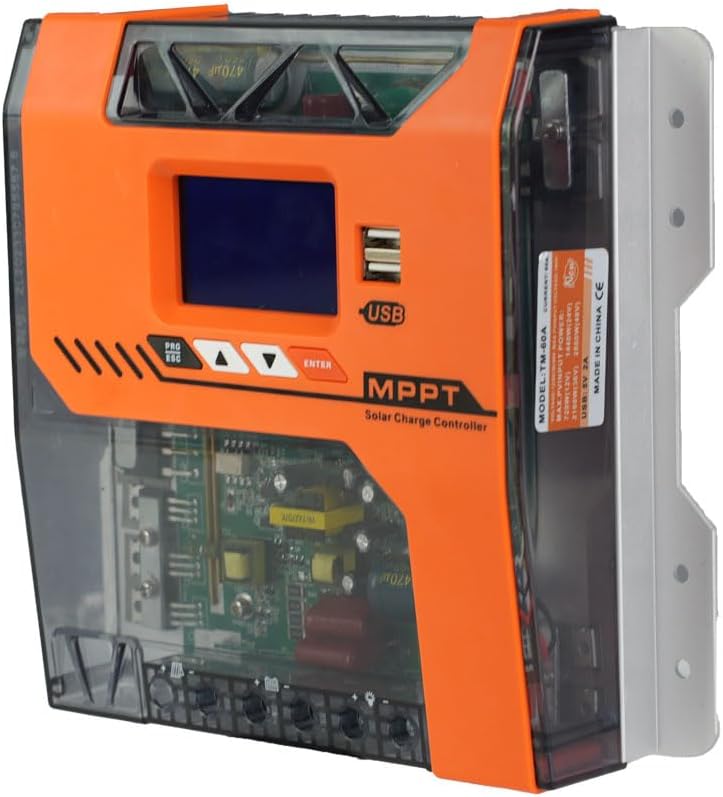

Y&H MPPT 20A Solar Charger Controller 12V 24V 36V 48V Battery Regulator

Y&H MPPT Solar Charge Controller

This Y&H solar charge controller utilizes advanced MPPT maximum power point tracking technology to optimize solar charging. With a tracking efficiency of not less than 99.5%, it is suitable for a variety of battery types including sealed lead-acid, ventilated gel, lithium, and flooded batteries.

Key Features

• MPPT Technology: Advanced maximum power point tracking for efficient solar charging.
• 20A Rating: 20A rated charging current with a maximum charging conversion efficiency of 97%.
• Automatic Voltage Recognition: Automatically recognizes 12V, 24V, 36V, and 48V battery systems.
• Solar Panel Input Power: Supports maximum solar panel input power of 240W (12V), 480W (24V), 720W (36V), and 960W (48V).
• High PV Input Voltage: Maximum PV input voltage of 150VDC.
• Excellent Heat Dissipation: Designed for efficient cooling.
• Multiple Load Control Modes: Features 24-hour working mode, light control mode, and light+time control mode.

Specifications

• Brand: Y&H
• Model: MPPT 20A
• Rated Charging Current: 20A
• System Voltage: 12V / 24V / 36V / 48V (Automatic Identification)
• Max PV Input Voltage: 150VDC
• Max PV Input Power: 240W (12V) / 480W (24V) / 720W (36V) / 960W (48V)
• Max Charging Efficiency: 97%
• Tracking Efficiency: >= 99.5%
• Battery Types Supported: Sealed lead-acid, ventilated gel, lithium, flooded.
• Load Control Modes: 24-hour, Light Control, Light+Time Control.
