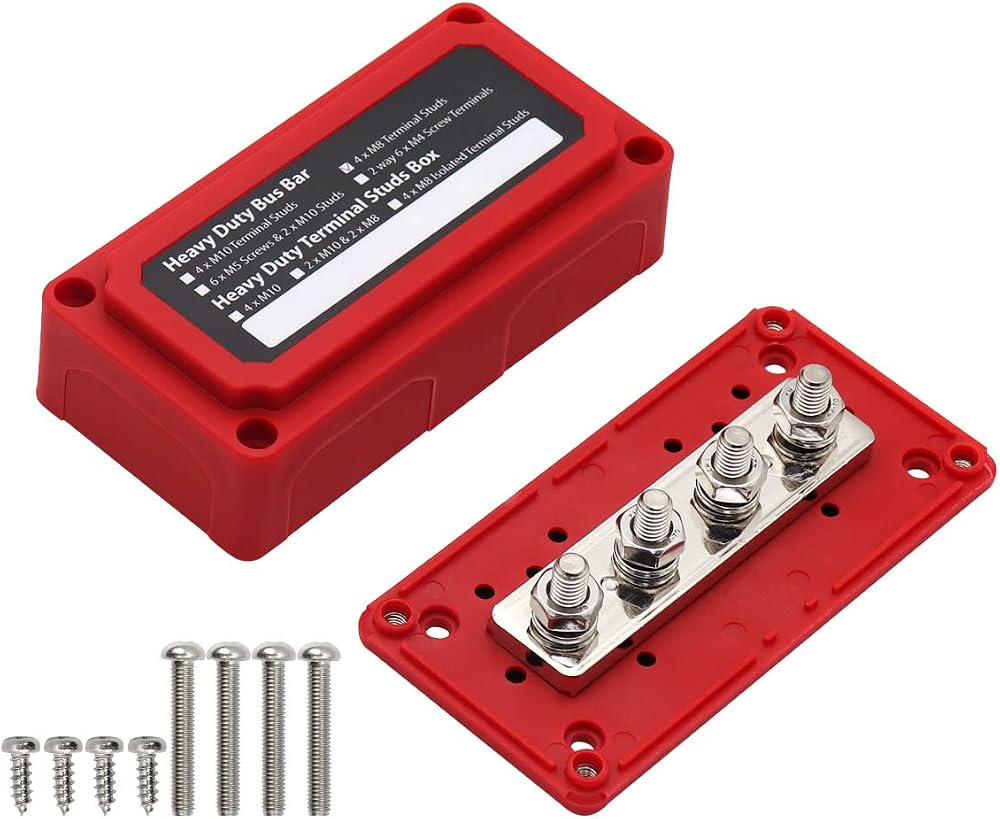

Tiardey 300A Red Bus Bar Power Distribution Block 4x M8 Studs 12-48V DC Marine

Tiardey 300A Heavy Duty Bus Bar Power Distribution Block

This Tiardey Red Bus Bar Box features a heavy-duty module design for efficient power distribution. It is ideal for marine, automotive, and solar applications requiring a robust junction block.

Key Features

• Amperage Rating: Highest amperage rating of 300A.
• Terminal Studs: Equipped with 4x M8 terminal studs (M10 also available).
• Module Design: Features removable windows for unobstructed wiring access.
• Durable Construction: Base and casing made from fibreglass-reinforced nylon for high mechanical strength and durability.
• Bus Material: Nickel-plated brass bus material.

Specifications

• Maximum Intensity: 300 A at 12V DC per connection.
• Maximum Voltage: 48V DC.
• Material: Nylon reinforced with fibreglass.
• Bus Material: Brass, nickel-plated.
• Dimensions (L x W x H): 138 x 69 x 44.5 mm (5.433 x 2.72 x 1.75 inches).

Package Includes

• 1 x 300A Heavy Duty Bus Bar Box
