Thermaltake Toughpower GF3 850W 80+ Gold Full Modular ATX 3.0 PSU PCIe 5.0

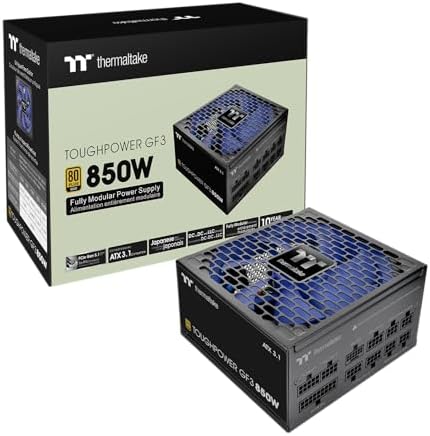

Thermaltake Toughpower GF3 850W Power Supply Unit

This Thermaltake Toughpower GF3 850W power supply is designed with a native PCIe 12+4pin connector, adhering to Intel’s ATX 3.0 specification and built for next-generation PCIe 5.0 graphics cards. It is capable of delivering up to 600W of power to PCIe 5.0 graphics cards.

Key Features

• Brand: Thermaltake
• Series: Toughpower GF3
• Wattage: 850W Maximum Output Capacity
• Efficiency: 80 PLUS Gold Certified at 115Vac input
• Modularity: Full Modular Design
• ATX Standard: ATX 3.0 Standard
• PCIe Gen: PCIe Gen.5 Ready
• Connector: Includes PCIe Gen.5 12VHPWR Connector (12+4 Pin)
• SLI/Crossfire Ready: Yes
• Fan Cooling: 13.5cm Fluid Bearing Fan
• Protections: OCP, OVP, UVP, OPP, SCP, OTP
• Warranty: 10 Year Warranty

Specifications

• Part Number: PS-TPD-0850FNFAGU-4
• Model: TPD-0850AH3FCG
• Color: Black
• Dimensions (W x H x D): 150mm x 86mm x 160mm
• Weight: 1.69 KG
• Power Factor Correction: Active PFC
• Power Good Signal: 100-150 msec
• Hold Up Time: More than 17ms at 100% of full load
• Input Current: 10.0A / 5.0A
• Input Frequency Range: 50/60Hz
• Input Voltage: 100V – 240V~
• Operating Temperature: 0°C to +40°C
• Operating Humidity: 20% to 90%, non-condensing
• Storage Temperature: -20°C to +70°C
• Storage Humidity: 5% to 95%, non-condensing
• MTBF: 100,000 hours minimum
• Safety Approvals: CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC
• Included Connectors: PCIe 6+2Pin x 4, PCIe 12+4Pin x 1
