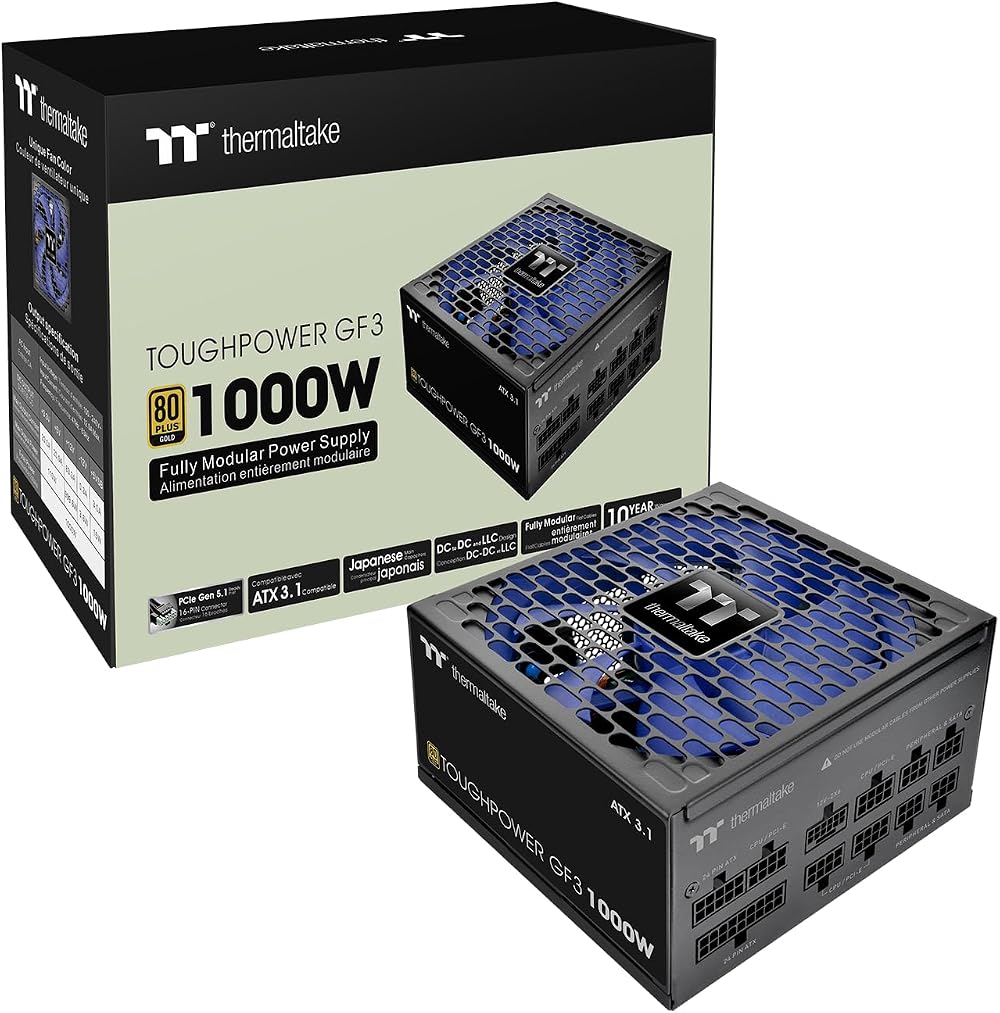

Thermaltake Toughpower GF3 1000W 80+ Gold ATX 3.0 PCIe 5.0 PSU RTX 40 Series

The Thermaltake Toughpower GF3 1000W Power Supply is engineered for next-generation systems, compatible with Intel’s ATX 3.0 specification and designed for PCIe 5.0 graphics cards. It features a native PCIe 12+4pin connector, capable of delivering up to 600W of power to modern NVIDIA RTX 40 series GPUs.

Key Features

• Native PCIe 12+4pin connector for current generation graphics cards
• Fully compatible with ATX 3.0 specification
• Ready for PCIe 5.0 graphics cards, delivering up to 600W
• 80 PLUS Gold certified for high efficiency
• Supports SLI/Crossfire multi-GPU setups
• Equipped with a quiet 13.5cm fluid bearing fan
• Comprehensive protection mechanisms: OCP, OVP, UVP, OPP, SCP, OTP
• Backed by a 10-Year Warranty

Specifications

• P/N: PS-TPD-1000FNFAGU-4
• Watts: 1000W
• Model: TPD-1000AH3FCG
• Max. Output Capacity: 1000W
• Color: Black
• Dimensions (W / H / D): 150mm(W) x 86mm(H) x 160mm(D)
• Weight: 1.72 KG
• PFC (Power Factor Correction): Active PFC
• Power Good Signal: 100-150 msec
• Hold Up Time: > 17msec at 100% of full load
• Input Current: 10.0A / 5.0A
• Input Frequency Range: 50/60Hz
• Input Voltage: 100V – 240V~
• Operating Temperature: 0°C to + 40°C
• Operating Humidity: 20% to 90%, non-condensing
• Storage Temperature: -20°C to + 70°C
• Storage Humidity: 5% to 95%, non-condensing
• Cooling System: 13.5cm fluid bearing fan
• Efficiency: Meets 80 PLUS Gold at 115Vac input
• MTBF: 100,000 hrs minimum
• Safety Approval: CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC
• Protection: OCP, OVP, UVP, OPP, SCP, OTP
• PCI-E Connectors: PCIe 6+2Pin x 4, PCIe 12+4Pin x 1
