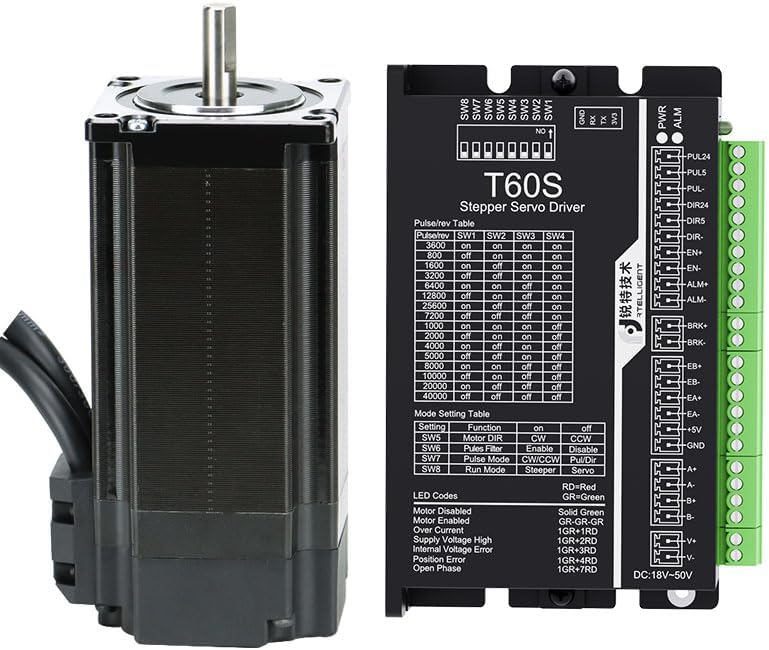

Nema 23 Closed Loop Stepper Motor Kit 2 Phase 1.0NM 3.5A Encoder CNC

The RTELLIGENT Nema 23 Closed Loop Stepper Motor and Driver Kit provides precise and reliable motion control for a wide range of applications. This 2-phase system combines a powerful 1.0Nm motor with an advanced driver, featuring an integrated high-resolution encoder to eliminate step loss and ensure accurate positioning. It is designed for demanding tasks requiring high speed, high torque, and exceptional precision.

Key Features

• Integrated 1000 high-resolution encoder for high precision and no loss of step
• Delivers high speed and high torque performance
• Stepper motor driver offers 16 types of microsteps for extremely accurate operation
• Maximum step count of 40,000 steps with encoder feedback
• Compact motor dimensions: 57x57x73mm for versatile integration
• Includes a 30cm motor cable and an encoder extension cable for convenient setup

Stepper Motor Specifications

• Brand: RTELLIGENT
• Type: Nema 23 Closed Loop Stepper Motor
• Step Angle: 1.8 degrees
• Holding Torque: 1.0 Nm
• Rated Current: 3.5A
• Phase: 2-phase
• Leads: 4-lead
• Dimensions: 57 x 57 x 73mm
• Encoder Resolution: 1000 lines

Driver Specifications

• Microstep Types: 16
• Maximum Step Count: 40,000 steps (with encoder feedback)

Wiring Connection

• Red: A+
• Blue: A-
• Green: B+
• Black: B-

Applications

• 3D Printers
• Medical Equipment
• Industrial Equipment
• Laser Engravers and Cutters
• CNC Machines
• Automatic Devices
