Hausdec Nema 17 Stepper Motor 17HS08-1004S 1.8 Degree 42mm 20mm Short Height 1A

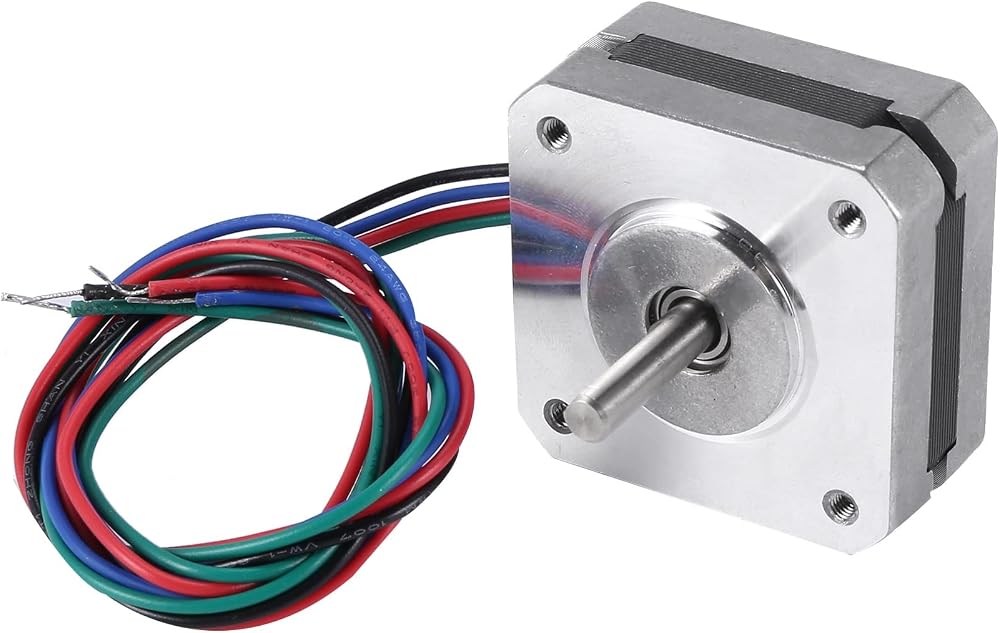

Hausdec Nema 17 Stepper Motor

This is a short height, bipolar Nema 17 stepper motor from Hausdec. It features a 1.8-degree step angle (200 steps per revolution) and is designed for applications like DIY 3D printers and CNC machines.

Key Features

• Brand: Hausdec
• Motor Type: Bipolar Stepper
• Step Angle: 1.8 Degrees
• Holding Torque: 13Ncm (18.4 oz.in)
• Rated Current Per Phase: 1.0A
• Short Height Design: Ideal for space-constrained projects
• Frame Size: 42 x 42mm
• Body Length: 20mm
• Shaft Diameter: 5mm
• Shaft Length: 20mm
• D-cut Length: 16.5mm
• Number of Leads: 4
• Lead Length: 400mm
• Weight: 140g
• Color: Silver
• Material: Metal

Specifications

• Manufacturer Part Number: 17HS08-1004S
• Phase Resistance: 3.5 ohms
• Inductance: 4.5mH +/-20% (1KHz)

Connection

• Black: A+
• Green: A-
• Red: B+
• Blue: B-

Important Warning

Warning: Always connect the motor to a constant current or chopper drive controller before testing. Connecting the motor directly to a power supply will damage the motor.

Package Contents

• 1 x Hausdec Nema 17 Stepper Motor

Note: Due to variations in lighting and display settings, the color of the item in the picture may differ slightly from the actual product. Please allow for a measurement error of +/- 1-3cm.
