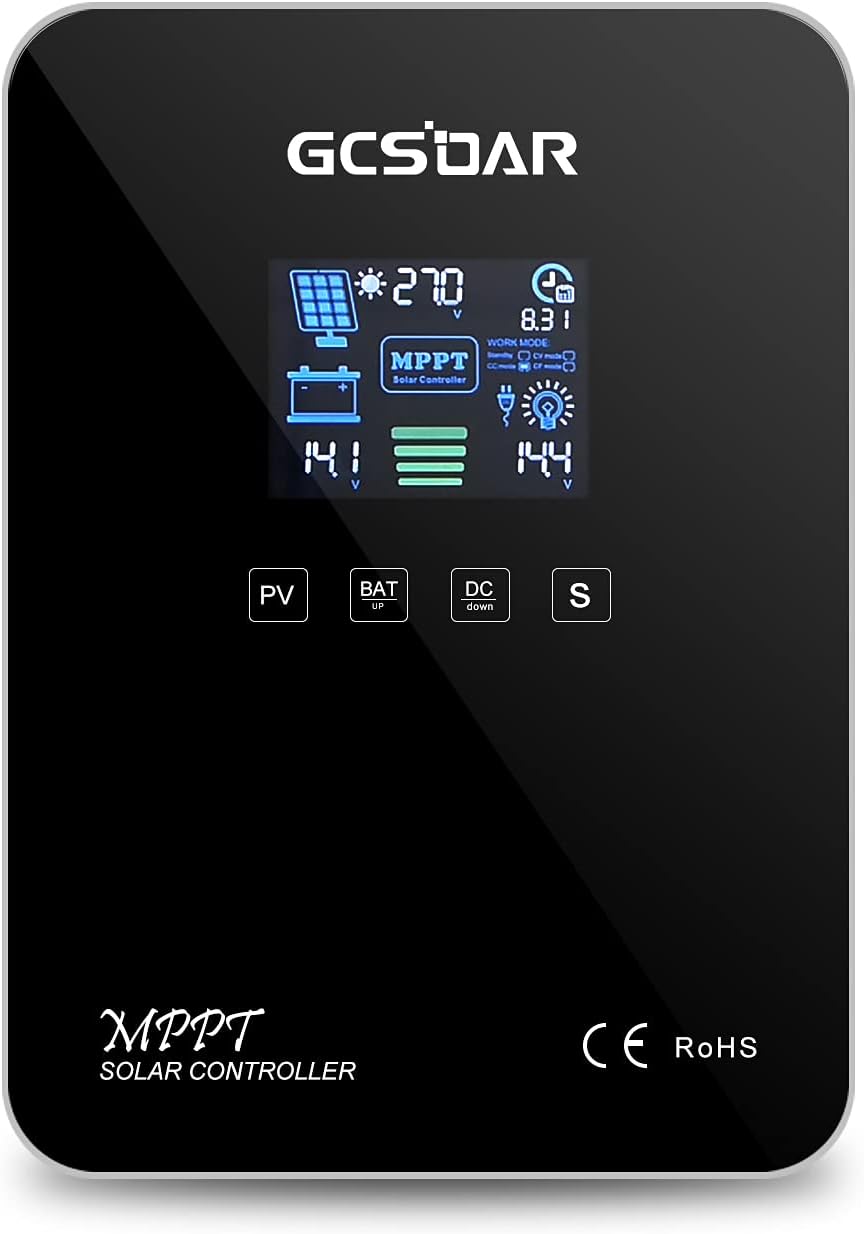

GCSOAR MPPT Solar Charge Controller 60A 12V 24V Auto 100V Max PV 780W Lead Acid

GCSOAR MPPT Solar Charge Controller 60A

Introducing the GCSOAR MPPT Charge Controller, featuring a new, advanced design for efficient and reliable solar power management. With its robust construction and intelligent charging capabilities, this controller is ideal for a wide range of solar energy systems.

Key Features

• Touch Screen Interface: Features a sleek touch screen with IP67 level protection and natural cooling.
• High Efficiency: Utilizes MPPT technology with tracking efficiency ≥ 99.5% and conversion efficiency >98%. Includes a current limiting charging function.
• Multi-Battery Support: Compatible with Lead-acid (Sealed / GEL / AGM / Flooded), Lithium (LiFePO4 / Li[NiCoMn]O2), and user-defined battery types.
• Four-Stage Charging: Designed to optimize battery performance and extend lifespan.

Specifications

• Model: GCIT6024(10Li)
• Rated Charge Current: 60A
• Rated Load Current: 30A
• Max. PV Voltage: 100V
• Grounding: Common Negative
• 12V System Capacity (Lead Acid): 780W
• 24V System Capacity (Lead Acid): 1560W
• System Capacity (Lithium Ion): 756W ~ 1512W
• Max. Wiring Size: 28mm²
• Weight: 2.78KG
• Product Dimensions: 245x170x63.5mm
• Package Dimensions: 334x255x123mm
• Protections: Input & output over-voltage/low-voltage, reverse polarity, over-heating, battery shedding protection.

Package Contents

• 1x 60A Solar Charge Controller
• 1x Temperature Sensor Cable
• 2x Operation Instructions
