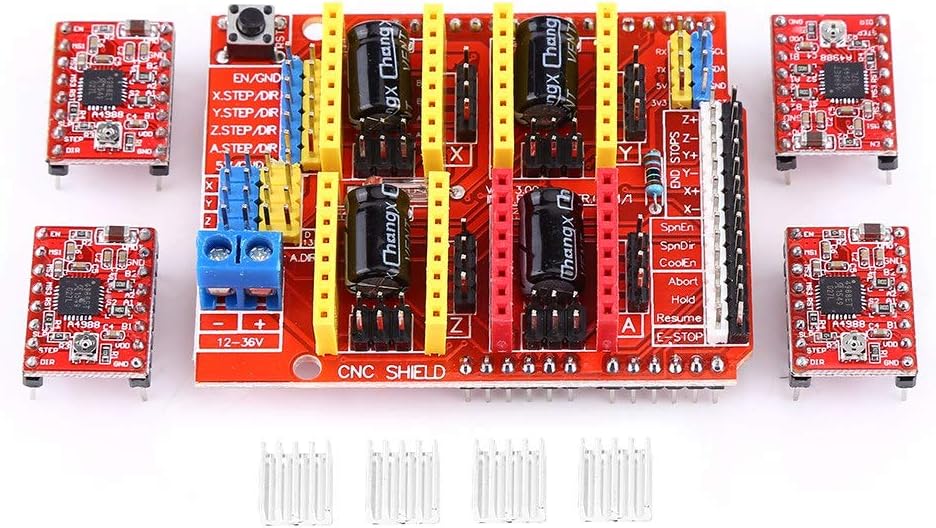

Fdit CNC Shield Expansion Plate 4x A4988 Heatsink Stepper Motor Controller 3D

Product Overview

This CNC Shield expansion plate from Fdit is designed for use with 3D printers and engraving machines. It supports removable A4988 or DRV8825 compatible stepper motor controllers and is compatible with GRBL 0.8 open-source firmware.

Key Features

• Compatibility: Use with removable A4988 or DRV8825 compatible step controllers.
• Application: Ideal for engraving machines and 3D printer driver applications.
• GRBL 0.8 Support: Operates with GRBL 0.8 compatible open-source firmware, converting G-code commands to step signals.
• 4-Axis Support: Features PWM shaft and steering, supporting up to 4 axes (X, Y, Z, A). The 4th axis can be a copy of X, Y, Z, or customized using D12 and D13 pins.
• Compact Design: Features a compact design allowing stepper motor connections via 4-pin connectors or soldering.
• Included Accessories: Comes with 4 heatsinks for A4988 stepper motor controllers.

Specifications

• Brand: Fdit
• Model: CNC Shield Expansion Plate
• Controller Compatibility: A4988, DRV8825
• Firmware Compatibility: GRBL 0.8
• Axis Support: 4 (X, Y, Z, A)
• Connections: 4-pin connectors or soldering
