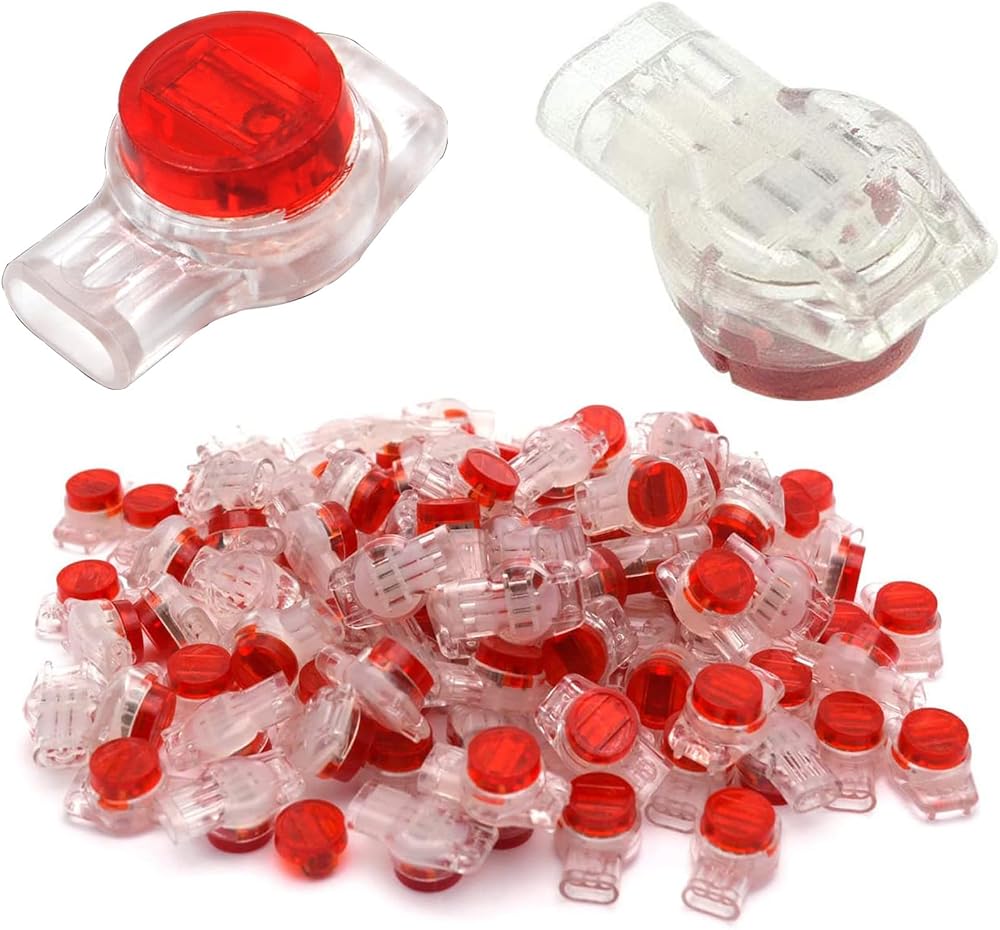

UR Connector 3 Port Telephone Wire Splice Kit Red 50 Pieces

Product Overview

This package includes 50 red CTRICALVER UR type button connectors, designed for efficient and reliable 3-wire direct connections. These connectors are ideal for various low-voltage applications, simplifying wiring tasks compared to traditional methods.

Key Features

• Package Includes: 50 pcs UR connectors (Red).
• Type: UR type button connector, 3-pole, single moisture-proof.
• Wire Compatibility: Suitable for wire diameters of 0.4-0.9mm² (AWG 19-26) with a maximum insulation outer diameter of 1.67mm.
• Ease of Use: Solves complicated wiring issues associated with screw crimp terminals. Simply push or rotate to insert wire ends directly into terminal block holes for quick and convenient installation.
• Moisture-Proof Design: Gel-filled internal design ensures an airtight environment for conductors, providing a reliable connection.
• Applications: Ideal for sub-wiring, connecting small to medium-sized power lines, low voltage alarm systems, telephone installations, data signal cables, and other conductors.
• Connection Method: Replaces conventional twist and solder connection methods with a butt splice design.
• Installation: Can be easily completed using a vise or dedicated wiring tongs for a fast and effective connection with a high success rate.

Specifications

• Brand: CTRICALVER
• Model: UR Type Connector
• Number of Ports: 3
• Number of Cores: 3
• Color: Red
• Quantity: 50 Pieces
• Applicable Wire Diameter: 0.4-0.9mm² / AWG 19-26
• Maximum Insulation Outer Diameter: 1.67mm
