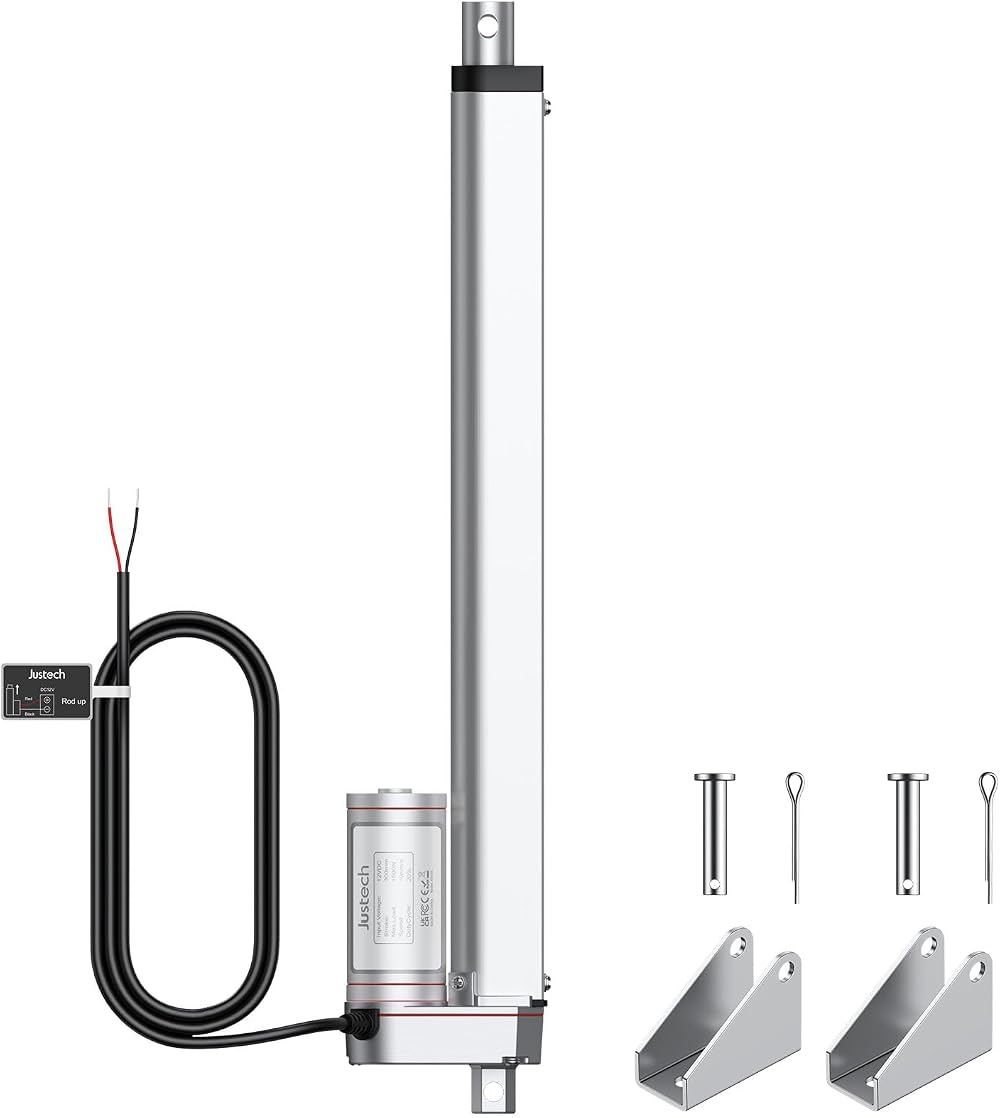

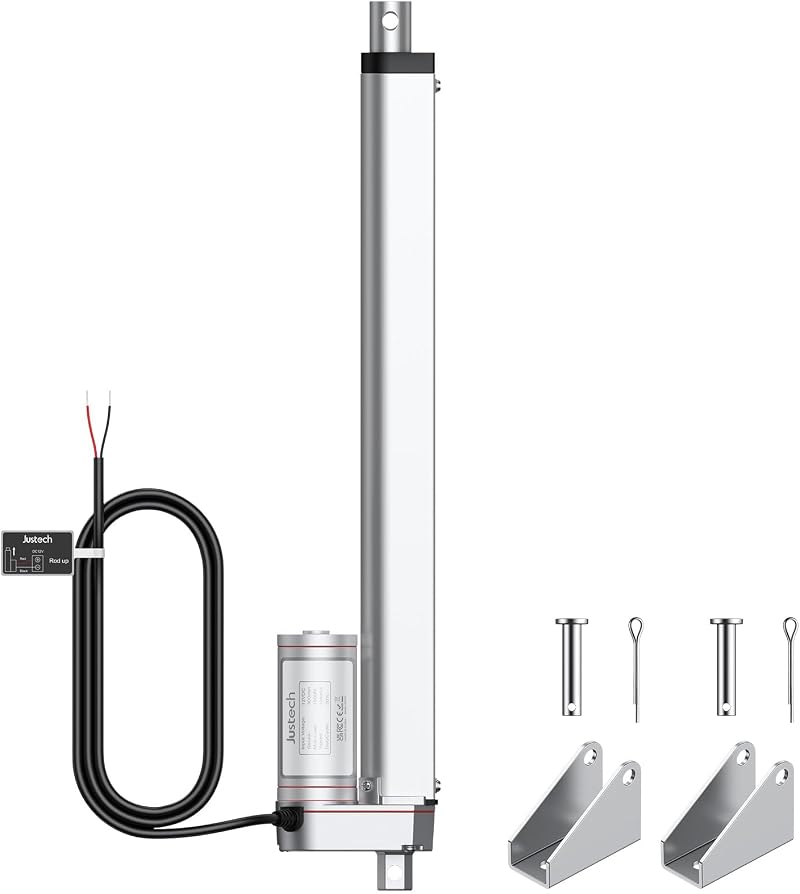

Justech 12V Heavy-Duty Linear Actuator 330LBS 8in 200mm IP65 With Brackets

Overview

The Justech 12V linear actuator provides robust push, pull, and positioning for a variety of automation projects. Designed for indoor and outdoor use with reliable performance and quiet operation.

Key Features

• Brand: Justech
• Voltage: 12V
• Max Load: 330LBS / 1500N
• Stroke Length: 8 inches / 200 mm
• Retracted Length: 14.6 inches / 305 mm
• Extended Length: 24.4 inches / 505 mm
• Load Speed: 7 mm/s; No-load Speed: 10 mm/s
• Protection: IP65 dustproof and waterproof
• Noise: Low noise operation (< 55 dB)
• Included: Brackets and mounting hardware for versatile installations

Specifications

• Fully Retracted Length: 305 mm
• Fully Extended Length: 505 mm
• Non-Load Current: 0.8 A
• Load Current: 2.5 A
• Minimum Install Size: 305 mm
• Maximum Install Size: 505 mm

Safety & Certification

• CE, RoHS, and UKCA compliant
• Overcurrent, overload, over-voltage, over-discharge, short circuit protections
• Self-locking function and built-in limit switch for precise stop positions

Applications

• Electric windows, cabinet and equipment automation, RV adjustments, solar trackers, industrial machinery
• Weather-exposed environments and indoor installations

Note: Please confirm the required specifications before purchasing to ensure compatibility with your project.
