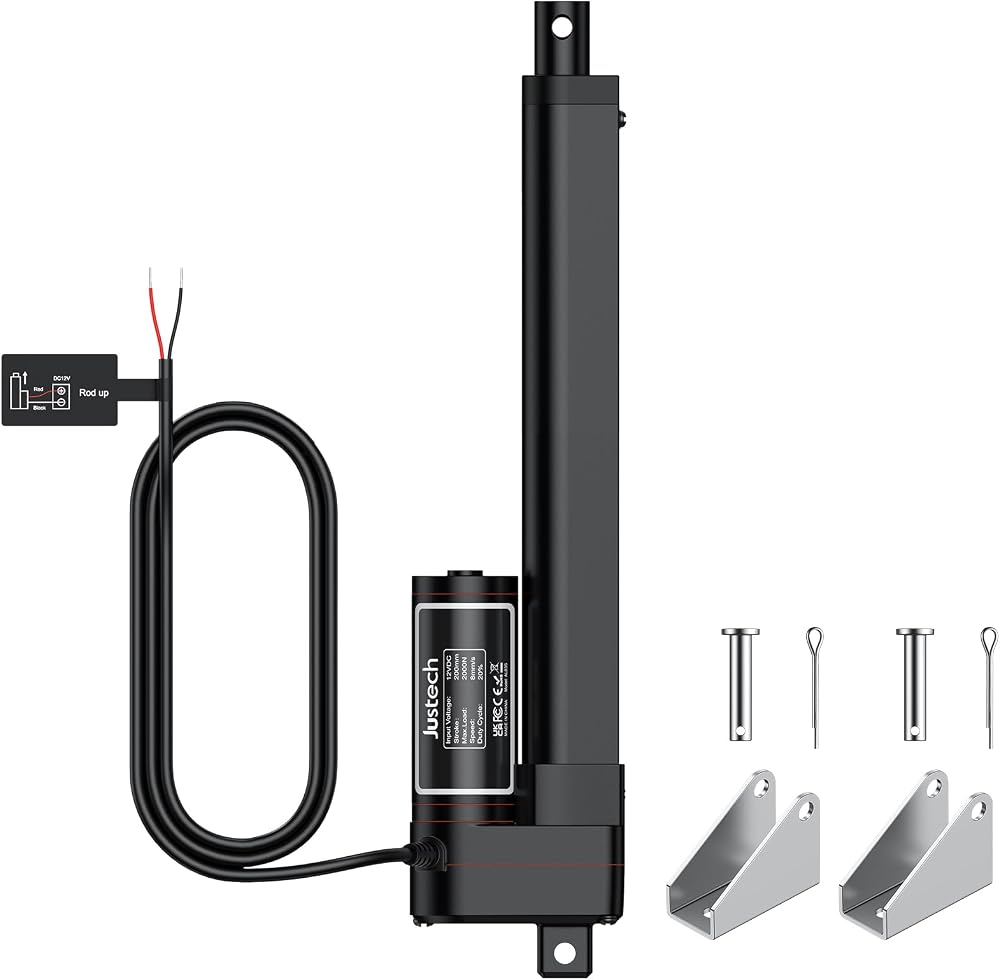

Justech 12V Heavy-Duty Linear Actuator 450LBS 8in 200mm IP54 Black

Key Features

• Brand: Justech
• Voltage: 12 V
• Max Load: 450 LBS / 2000 N
• Stroke Length: 8 inches / 200 mm
• Retracted / Extended Lengths: 13 inches (330 mm) / 21 inches (530 mm)
• Speed: 6 mm/s under load; 8 mm/s no-load
• IP Rating: IP54 for dust and water resistance
• Noise: Silent operation with plastic gears, < 55 dB
• Warranty/Certifications: CE, RoHS, UKCA

Product Description

The Justech 12V heavy-duty linear actuator provides precise linear motion for a wide range of applications including electric windows, RV adjustments, solar trackers, agricultural equipment and industrial machinery. Designed for reliability in outdoor and indoor environments, it pushes, pulls, lifts, or positions loads with controlled speed and shutdown safety features.

Technical Specifications

• Max. Load: 450 LBS / 2000 N
• Max. Pull Load: 352 LBS / 1600 N
• Stroke: 8 in / 200 mm
• Fully Retracted: 13 in / 330 mm
• Fully Extended: 21 in / 530 mm
• Non-Load Speed: 8 mm/s
• Load Speed: 6 mm/s
• Electrical: Non-load 0.5 A, Load 3 A
• Install Size: 330 mm (mini), 530 mm (max)
• Protection: IP54, dustproof, waterproof, corrosion-resistant

Safety & Compliance

• Self-locking mechanism with built-in limit switches for precise stop positions
• Protective features: overcurrent, overload, over-voltage, over-discharge, short circuit
• Safety certifications: CE, RoHS, UKCA

Note: Please confirm the required specifications before purchasing to ensure compatibility with your project. This actuator is suitable for DIY, home automation, agriculture, and industrial applications.
