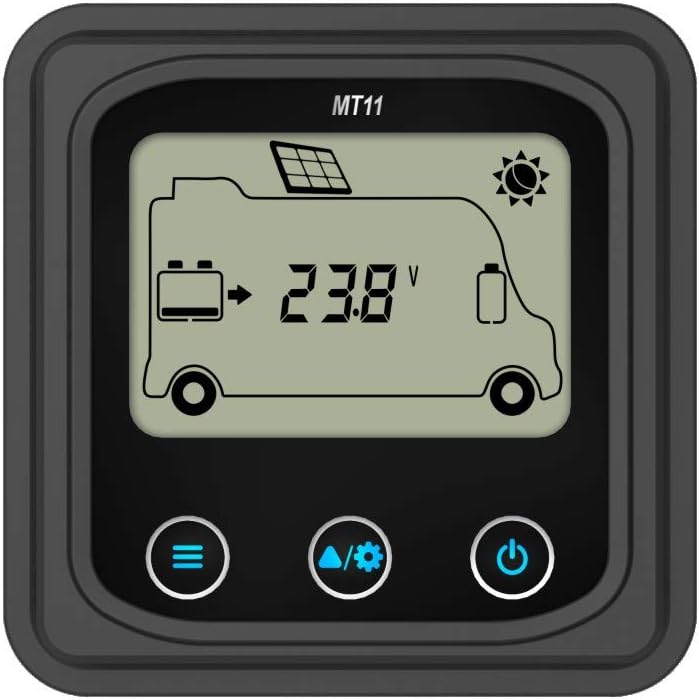

EPEVER MT11 Remote Meter for DuoRacer Solar Charge Controller 10A-30A

EPEVER MT11 Remote Meter for DuoRacer Charge Controller

Monitor and control your EPEVER DuoRacer solar charge controller with the MT11 remote meter. This device allows you to view real-time running data and working status, adjust settings like battery type and temperature unit, and clear energy generation history.

Key Features

• Compatibility: Designed for EPEVER DuoRacer MPPT charge controllers (10A, 20A, 30A).
• Real-time Monitoring: Displays operating data and working status in digital, graphic, and text formats on an LCD screen.
• Intuitive Control: Features three touch buttons for easy navigation and parameter adjustment.
• Communication: Utilizes RS485 communication for a longer connection distance, includes a 1.5 meter communication cable.
• Power Saving: Low self-consumption for both active and standby modes.

Technical Specifications

• Self-consumption (Switching): 13 mA / 5 VDC
• Self-consumption (Turn Off): 4 mA
• Ambient/Storage Temperature: -20 to +70 °C
• Protection Class: IP20
• Dimensions: 98.4 x 98.4 x 50 mm
• Weight: 0.11 kg

Certificates and Warranty

• Certificates: CE certified
• Warranty: 2-year manufacturer's warranty
